2021年5月份，F(xiàn)DA發布了一則MR相關的指南終版，提供了FDA關于在MR環境下評估醫療器械安全性和兼容性的測試建議，以及醫療器械標簽中磁共振成像（MRI）安全信息的推薦格式。此指南取代了2014版的MR指南"Establishing Safety and Compatibility of Passive Implants in the Magnetic Resonance (MR) Environment"。



與2014版指南相比，此指南最大的變化在于以下幾點：



適用產品范圍更廣了：



       之前僅適用于無源植入類器械，現在適用于所有預期進入MR環境的醫療



       器械，包括所有植入醫療器械、固定在患者身上或由患者攜帶的醫療器



       械（例如，外部胰島素泵、脈搏血氧儀）、在臨床護理期間合理預計會



       進入MR環境的醫療設備，以及所有打算進入MR環境的醫療器械。



       這意味著很多醫療器的械都要考慮這個指南的要求了，整個設計開發過



       程中都要注意符合這個指南的要求。



MR相關labeling的要求更具體了：



       要求所有產品labelling上的MR labeling都要清晰易懂，且能夠在制造商



       網站上和/或通過電話獲取到。不能使用MR Compatible這個標識，因?yàn)?/span>



       這個標識容易造成誤解，且已經被廢棄了。



針對這個指南，F(xiàn)DA在6.24舉辦了一場網絡研討會，大家可以在之前文章中找到相關通知：



【FDA會議通知】2021.06.24 Webinar - 醫療器械在MR環境下的安全所進行的測試和標記



此研討會相關的信息分享給大家：

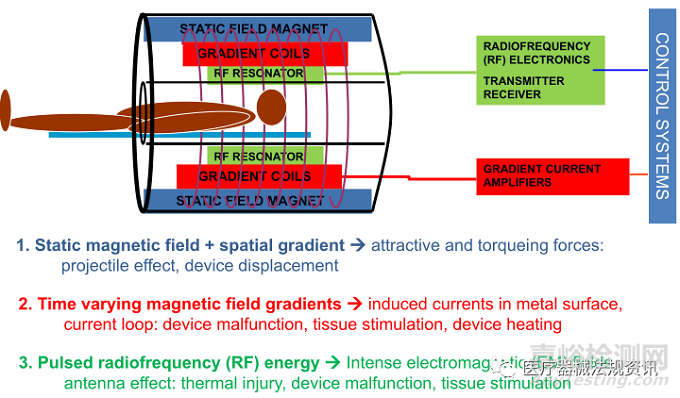

1、醫療器械與磁共振環境的相互作用，概述如下圖：





2、指南發展背景：



• Standardization of testing for passive implants



– American Society for Testing and Materials (ASTM) Test Standards



• Evolution of the Passive Implant Guidance



– “Establishing Safety and Compatibility of Passive Implants in the



Magnetic Resonance (MR) Environment,” dated December 11, 2014



• Safety testing for active implantable medical devices in the MR environment



– Covered currently by the ongoing ISO (International Organization for



Standardization)/TS (Technical Specification) 10974



• Identification of a need for a comprehensive guidance



• Draft guidance issued for comment August 2, 2019: “Testing and Labeling Medical Devices for Safety in the Magnetic Resonance (MR) Environment”



3、Relevant FDA Recognized Consensus Standards



• ASTM F2052: Standard Test Method for Measurement of Magnetically Induced Displacement Force on Medical Devices in the Magnetic Resonance Environment



• ASTM F2119: Standard Test Method for Evaluation of MR Image Artifacts from Passive Implants



• ASTM F2182: Standard Test Method for Measurement of Radio Frequency Induced Heating on or Near Passive Implants During Magnetic Resonance Imaging



• ASTM F2213: Standard Test Method for Measurement of Magnetically Induced Torque on Medical Devices in the Magnetic Resonance Environment



• ASTM F2503: Standard Practice for Marking Medical Devices and Other Items for Safety in the Magnetic Resonance Environment



• IEC 60601-2-33: Particular requirements for the basic safety and essential performance of magnetic resonance equipment for medical diagnosis



• ISO/TS 10974: Assessment of the safety of magnetic resonance imaging for patients with an active implantable medical device



4、重要術語：



•磁共振（MR）環境（Magnetic Resonance (MR) environment）



–“磁共振磁體周圍空間的三維體積，包含法拉第屏蔽體積和0.50 mT磁場輪廓（5高斯（G）線）。這里指的是醫療器械可能因暴露于磁共振設備和附件產生的電磁場而造成危險的區域。



•磁共振（MR）系統（Magnetic Resonance (MR) System）



MR設備的集合，附件，包括顯示、控制、能源供應和受控訪問區域（如提供）”的裝置

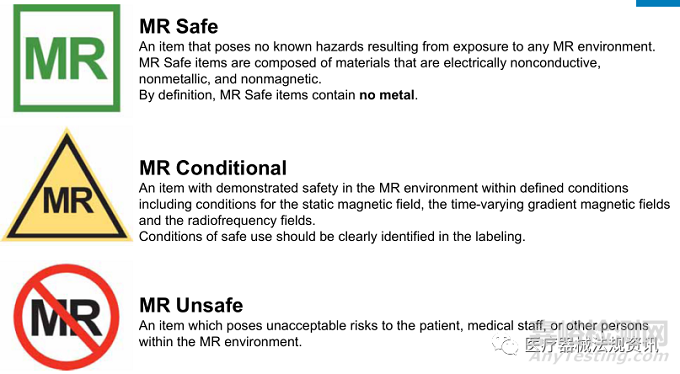

•MR安全（MR Safe）



–“暴露在任何MR環境中不會造成已知危害的醫療設備。MR-Safe醫療器械由不導電、非金屬和非磁性的材料組成。



•MR條件性（MR Conditional）



–“在規定條件下，包括靜態磁場、時變梯度磁場和射頻場條件下，在MR環境中證明安全的醫療器械。”



•MR不安全（MR Unsafe）



–“對MR環境中的患者、醫務人員或其他人員造成不可接受風險的醫療設備”



5、MR環境中醫療器械需解決的危害



• Magnetically induced displacement force (ASTM F2052)



• Magnetically induced torque (ASTM 2213)



• Heating (ASTM F2182, ISO/TS 10974)



• Gradient induced vibration (ISO/TS 10974)



• Gradient induced electrical potential (unintended tissue stimulation) (ISO/TS 10974)



• Rectification of radiofrequency pulses (unintended tissue stimulation) (ISO/TS 10974)



• Medical device malfunction (ISO/TS 10974)



• Extent of image artifact (ASTM F2119)



6、Reporting Results的要求



• Test report summaries, and if applicable, complete test reports should:



– List the hazard addressed by the test



– List the test equipment used



– Include results and all report elements as defined in the consensus  standard.



• For the computational modeling report, follow the FDA Guidance: Reporting of Computational Modeling Studies in Medical Device Submissions .



• When ASTM F2182 is used, scale the values for °C/(V/m) or in °C/(W/kg) to a temperature increase (in °C) for the exposure conditions specified in the MR Conditional labeling.



• Provide a written narrative or a tabulated summary, including a narrative discussion of the results/conclusions



• See also the FDA guidance: Recommended Content and Format of Non-Clinical Bench Performance Testing Information in Premarket Submissions

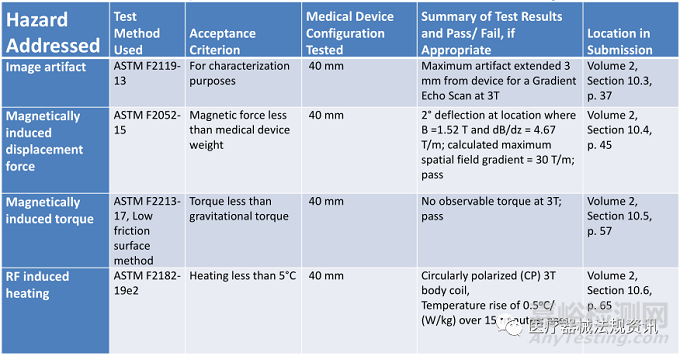

Example of a Tabular Test Summary





7、MRI Safety Labeling的要求



The labeling should include:



• Sufficient information for a health care professional to determine whether a device can safely enter the MR environment



• A separate section of your labeling entitled “MRI Safety Information.”



• Based on assessments, MR Safe, MR Unsafe, or MR Conditional



• The appropriate symbol from ASTM F2503 and/or the corresponding term in the labeling



• A patient medical device card with MRI safety information



The MRI safety information should be readily accessible on the manufacturer’s website and/or by telephone.





對于MR Conditional的設備，還有較多l(xiāng)abeling的要求，大家可以細讀指南要求了解更詳細的要求。

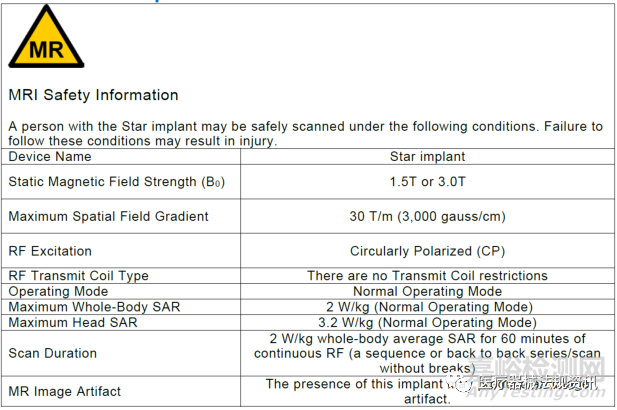

Example MR Conditional labeling for a passive medical device





還有一類labeling，為Safety in MRI Not Evaluated的labeling，要求如下：



The labeling should include the following information:



“The <insert medical device name> has not been evaluated for safety in the MR environment. It has not been tested for heating or unwanted movement in the MR environment. The safety of <insert medical device name> in the MR environment is unknown. Performing an MR exam on a person who has this medical device may result in injury or device malfunction.”



Safety in MRI Not Evaluated的labeling的適用范圍如下：



適用于預期在MR環境中使用的數量非常有限的醫療設備，例如某些無源植入物：



–以前沒有提供任何關于MRI安全性的信息



–沒有因暴露于MR環境而導致的已知不良事件



不適合標為Safety in MRI Not Evaluated的器械：



–通常被標記為MR Conditional或MR Unsafe



–新型的器械



–含有鐵磁性材料



–有源類醫療器械



–部分植入的器械
