公開/公告號

US10932658B2

申請日

2020-02-27

發明名稱

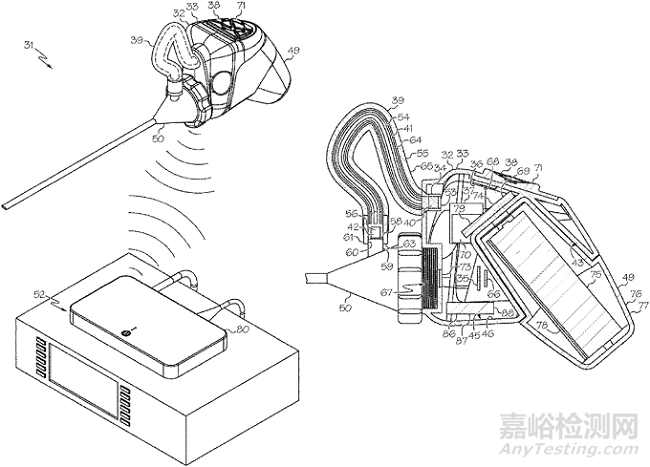

Wireless imaging system comprising a head unit and a light cable that comprises an integrated light source

解決的技術問題

Modern endoscopic surgical procedures, which are generally considered quick and simple, actually require a lengthy preoperative period to set up the necessary equipment and require the use of a number of wires and cables that are often draped over patients and can hinder surgeons and their staff. Moreover, although state-of-the-art LED-based systems are more efficient than the older xenon lighting systems, which may use over 1000 watts of power, these newer light source units are still very power intensive, requiring 300 watts or more, most of which is wasted as heat or lost through light leaking from the external light cable. In addition, the wasted heat has been repeatedly cited as the source of operating room fires in cases where the cables were draped over a patient incorrectly or when the heated endoscope met a combustible material.

技術方案

A wireless imaging system comprising a head unit and a light cable is provided. The head unit comprises a head unit case, a head unit electrical connector, an image sensor, a wireless transceiver, a central processing unit, and a user-input component. The light cable comprises a light cable electrical connector, a power cable, and an integrated light source. The integrated light source comprises an emissive radiation source having a first spectrum, an optical element located to direct emissions from the emissive radiation source, a volumetric spectrum converter, and an optical reflector located about the converter. The converter converts emissions directed from the emissive radiation source to emissions having a second spectrum different from the first spectrum. The reflector reflects the converter emissions towards the output filter.

相關附圖

公開/公告號

US10488018B2

申請日

2016-08-17

發明名稱

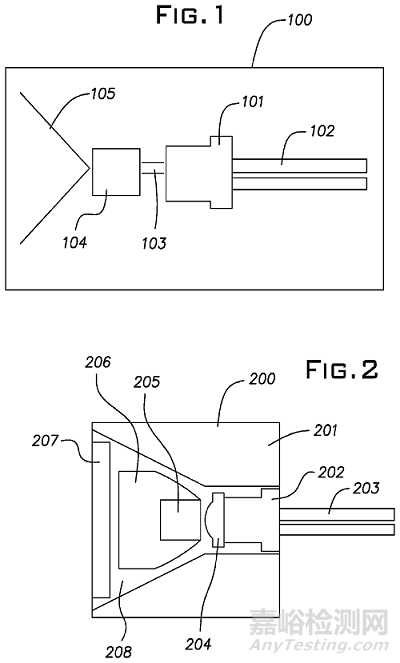

Light source

解決的技術問題

For these reasons, the overall efficiency of the extant designs remains comparatively low, even when LD-based devices (the most efficient design) are analyzed. Furthermore, prior designs that use an LD to provide the primary light input completely saturate the remote phosphor elements. This over saturation can lead to the inadvertent emission of coherent laser light, which can cause damage to sensitive electronics, materials, eyes, and skin.

技術方案

An integrated light source includes: an emissive radiation source having a first spectrum; an optical element located to direct emissions from the emissive radiation source; a volumetric spectrum converter located to convert emissions directed from the emissive radiation source to emissions having a second spectrum different from the first spectrum; an optical reflector located about the converter; an output filter, the reflector being located to reflect the converter emissions towards the output filter; and a package body having an internal cavity containing the emissive radiation source, optical element, converter, reflector, and filter, wherein desired light radiates from the cavity through the filter.

相關附圖

公開/公告號

US10772488B2

申請日

2017-11-10

發明名稱

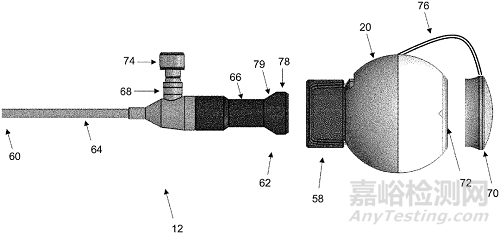

System and methods for endoscopic imaging

解決的技術問題

Accordingly, there exists a need for an inexpensive, lightweight, mobile platform that is both accurate and reliable, and does not require an excessive amount of time to assemble or to establish external connections or cables.

技術方案

A portable endoscopic inspection system comprises an endoscope having a proximal end with a flanged eyepiece for observation and a distal end with a lens assembly for insertion into a region of interest. A light port transports incident light to the region of interest along an lighting pathway, and reflected light is transported along an imaging pathway from the lens assembly to the eyepiece. A wireless imaging unit comprises a light source which detachably couples to the light port for generating the incident light, and an imaging sensor for recording images of the reflected light from the eyepiece. The wireless imaging unit comprises a variable coupling system which mechanically couples the imaging sensor to the flanged eyepiece independent of the shape and/or size of the flange of the eyepiece.

相關附圖

公開/公告號

US20200405138A1

申請日

2020-09-11

發明名稱

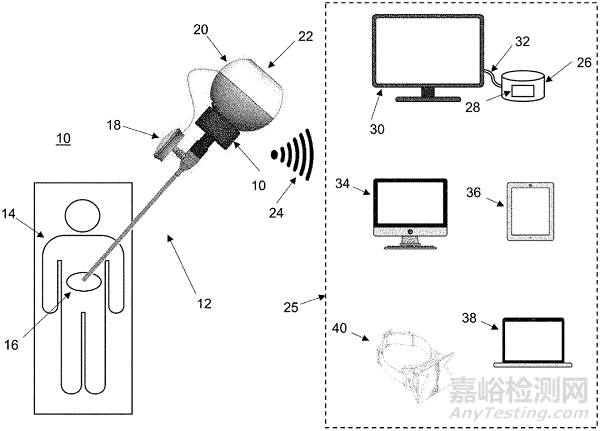

System and methods for endoscopic imaging

解決的技術問題

Accordingly, there exists a need for an inexpensive, lightweight, mobile platform that is both accurate and reliable, and does not require an excessive amount of time to assemble or to establish external connections or cables.

技術方案

A portable endoscopic inspection system comprises an endoscope having a proximal end with a flanged eyepiece for observation and a distal end with a lens assembly for insertion into a region of interest. A light port transports incident light to the region of interest along an lighting pathway, and reflected light is transported along an imaging pathway from the lens assembly to the eyepiece. A wireless imaging unit comprises a light source which detachably couples to the light port for generating the incident light, and an imaging sensor for recording images of the reflected light from the eyepiece. The wireless imaging unit comprises a variable coupling system which mechanically couples the imaging sensor to the flanged eyepiece independent of the shape and/or size of the flange of the eyepiece.

相關附圖
