Foreword 前言
Revision 06 of this document brings significant changes to both BMS-0000051 (this document) and BMS-0000258 (“Supplier Quality Assurance Manual”).
本文件的06版對BMS-0000051（本文件）和BMS-0000258（《供應商質量保證手冊》）都做了重大修訂。
As of this revision, the last revisions of BMS-0000051 and BMS-0000258 have been combined under the label BMS-0000051. As a result, BMS-0000258 is now obsolete.
自本次修訂開始，BMS-0000051和BMS-0000258的最后修訂已經合并為BMS-0000051，BMS-0000258現在作廢。
Contents 目錄
Section 1 Introduction
第一節 簡介
Section2Document Purpose and Structure
第二節 文件目的和結構
Section 3 General Expectations & Procedures
第三節 通用期望和程序
3.1 Supplier Responsibilities 供應商責任
3.1.1 Senior Management Responsibilities 高級管理人員職責
3.1.2 Confidentiality 保密性
3.2 Quality Management System(QMS) Requirements 質量管理體系要求
3.2.1 Quality Activities 質量活動
3.3 Industry Standards 行業標準
Section 4 Supplier Assessment and Qualification
第四節 供應商評估和資格認證

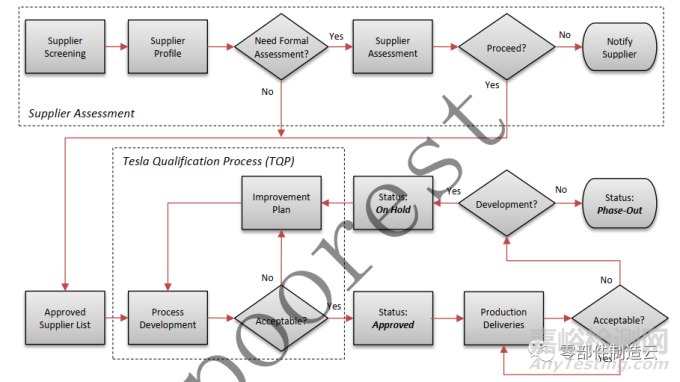

4.1 Assessment and Qualification Process 評估和資格認證過程
4.1.1 Supplier Assessment 供應商評估
4.1.2 Supplier Qualification and Nomination 供應商資格認證和提名
4.1.3 Assessment Corrective Action評估糾正措施
4.2 Audit 審核
4.2.1 Process Audit 過程審核
4.2.2 Safety Critical Audits 安全關鍵審核
4.3 Supplier Risk 供應商風險
4.4 Supplier Performance Feedback 供應商績效反饋
Section 5 General Requirements
第五節 通用要求
5.1 Safety & Critical Characteristic 安全和關鍵特性
5.1.1 Safety Critical Components and Characteristics 安全關鍵零件和特性
5.2 Change Control 變更控制
5.2.1 ECO-Engineer Change Order 工程變更單
5.2.2 PCR-Process Change Request過程變更申請
5.3 Control Plans 控制計劃
5.4 MSA-Measurement System Analysis 測量系統分析
5.5 MPR-Mating Parts Request 配套零件要求
5.6 Transportation Requirements 運輸要求
5.6.1 Package 包裝
5.6.2 Labeling 標簽
5.6.3 Preservation 防護
5.6.4 Shipping 發運
5.6.5 invoircing 開具發票
5.6.6 Certificate of Comliance 合格證書
5.7 Regulatory Compliance 監管合規
5.7.1Material RegulatoryComliance材料合規監管
5.8 Nonconforming Parts 不合格零件
5.8.1 Deviation Approval 偏差批準
5.8.2 SCAR-Supplier Corrective Action Request 供應商糾正措施要求
5.8.3 Product Containment/Controlled Shipping 產品遏制/受控發運
5.8.4 Warranty 售后
5.9 HVPT-High Volume Production Trial 大批量生產實驗
Section 6 TQP-Tesla Qualification Process
第六節 特斯拉資格認證程序

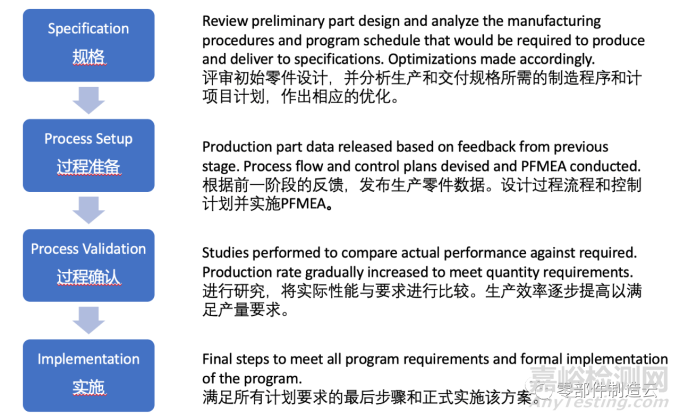

6.1 Overview 總覽
6.2 Specification 規格
6.2.1 Program Schedule 項目時間表
6.2.2 Inspection Standard 檢驗標準
6.2.3 Measurement System Analysis（MSA）for Equipment Proposal 設備提案的測量系統分析
6.2.4 Control Plan (Prototype) 控制計劃（原型樣件）
6.2.5 2D Drawing GD&T 2D圖紙的形位公差
6.2.6 Design for Manufacturing (DFM) Complete 制造設計完成
6.3 Process Setp 過程準備
6.3.1 Process Flow Chart 過程流程圖
6.3.2 PFMEA-Process Failure Mode and Effects Analysis 過程失效模式及后果分析
6.3.3 Control Plan（Production）控制計劃（生產）
6.3.4 Measurement System Analysis（MSA）for Equipment Acceptance 設備驗收的測量系統分析
6.4 Process Validation 過程確認
6.4.1 Measurement System Analysis（MSA）for Equipment Validation 設備確認的測量系統分析
6.4.2 Validation Testing 確認性測試
6.4.3 Capacity Study 產能研究
6.4.4 Capability Study 能力研究
6.4.5 SDS-Sample Data Sheet 樣件數據表
6.4.6 AAR-Appearance Approval Report 外觀批準報告
6.4.7 Packaging Plan 包裝計劃
6.4.8 Control Plan（Safe Launch）控制計劃（安全啟動）
6.5 Implementation 實施
6.5.1Material Regulatory Compliance Submissions 材料法規符合性提交
6.5.2 Safety Regulatory Compliance Submissions 安全監管合規提交
6.5.3 Tracibility 可追溯性
6.5.4 PFS-Problem Follow Sheet 問題跟蹤表
6.5.5 TQP Approval TQP批準
Section 7 TQP-Appendix 附錄
7.1 Abbreviation & Definition 縮寫和定義

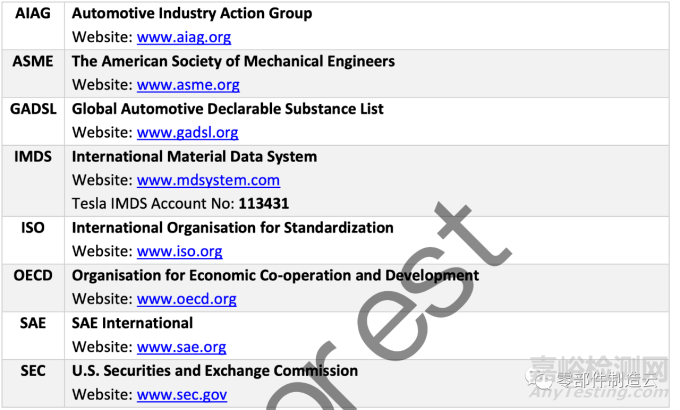

7.2 External Contact Information外部聯絡信息

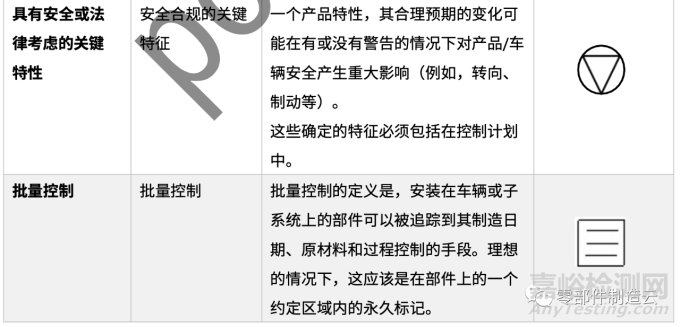

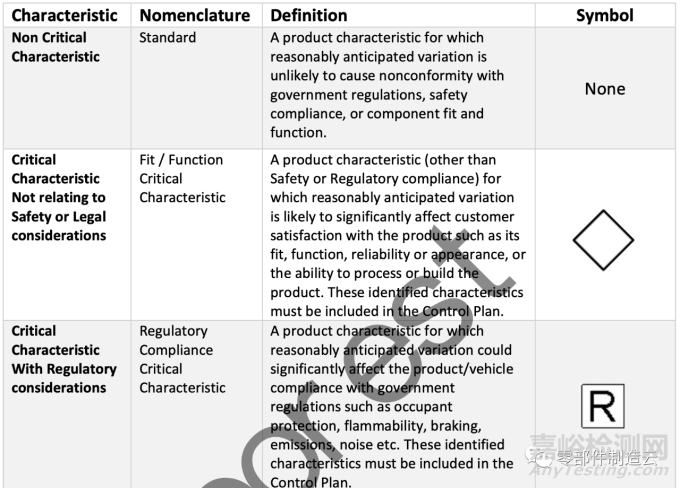

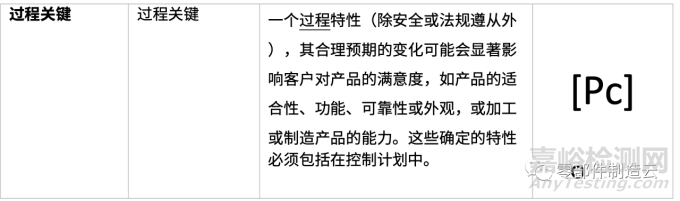

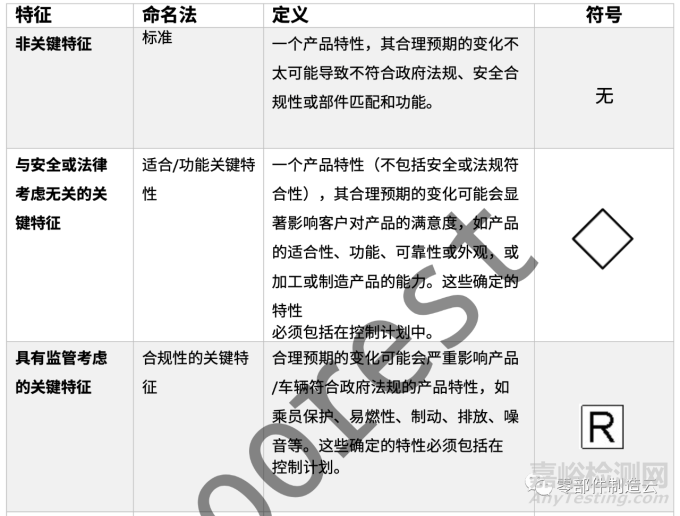

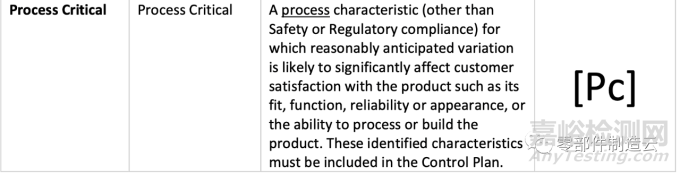

7.3 Critical Characteristic Symbols and Definitions 關鍵特性符號和定義
Section 8 Reference 參考文獻
Section 1 Introduction
第一節 簡介
The Supplier Handbook is intended for suppliers who directly supply parts and/or materials to Tesla. It serves to work in conjunction with relevant industry standards andto provide clarification of Tesla’s requirements and expectations.
本供應商手冊是為直接向特斯拉提供零部件和/或材料的供應商而編寫的。它的作用是與相關行業標準配合，并對特斯拉的要求和期望進行澄清。
Tesla is committed to operating as a world-class innovative leader, and to support that commitment, suppliers are chosen based on their operating excellence and methodologies. We frequently evaluate our suppliers and thoroughly look forward to doing continued business with those who have Tesla’s best interests in mind.
特斯拉致力于成為世界級的創新領導者，為了支持這一承諾，我們根據供應商的卓越運營和方法來選擇他們。我們經常評估我們的供應商，并徹底期待著與那些將特斯拉的最佳利益放在心上的供應商繼續開展業務。
As a business partner, your feedback is extremely valued and we encourage you to share your input on all areas covered in this and any other documents, or in any other aspects of our business. Site visits to Tesla are also encouraged and you should at all times feel free to provide feedback, whether minor or major.
作為商業伙伴，我們非常重視你的反饋意見，我們鼓勵你分享你對本文件和其他任何文件中所涉及的所有領域，或我們業務的任何其他方面的意見。我們也鼓勵對特斯拉進行實地考察，你應該在任何時候都能自由地提供反饋意見，無論是小事還是大事。
Section 2 Document Purpose and Structure
第二節 文件目的和結構
This document covers Tesla’s operating standards and aims to guide suppliers, step-bystep, towards a successful mass production program using the default tasks and stages.Tesla representatives are permitted to have suppliers deviate from some of these tasks,or part thereof, and may choose to do so if deemed appropriate.
本文件涵蓋了特斯拉的運營標準，旨在通過默認的任務和階段，一步一步地指導供應商成功實現大規模生產計劃。特斯拉代表允許供應商偏離其中一些任務或部分任務，如果認為合適，可以選擇這樣做。
This and all pertaining documents should be read as soon as physically possible, to ensure a clear understanding for all who are involved of their responsibilities. Several documents are referenced throughout this document and may be found on the Supplier Portal, or as otherwise noted, if controlled by Tesla. Documents that are not controlled by Tesla, such as industry standards, must be obtained separately from an appropriate organization.
應盡快閱讀本文件和所有相關文件，以確保所有相關人員清楚地了解其責任。本文件中引用了一些文件，可在供應商門戶網站上找到，或在其他地方注明，如果由特斯拉控制。不受特斯拉控制的文件，如行業標準，必須單獨從適當?shù)慕M織獲得。
This document is best viewed digitally to make use of internal links; individuals using a hard copy are responsible for ensuring that they are using the latest revision. Any future revisions become effective upon issuance to the supplier.
本文件最好以數字形式查看，以利用內部鏈接；使用硬拷貝的個人有責任確保他們使用的是最新版本。今后的任何修訂在發給供應商時即生效。
Section 3 General Expectations & Procedures
第三節 通用期望和程序
3.1 Supplier Responsibilities 供應商責任
1. Suppliers are expected to provide 100% conforming products, on time and in the specified quantities, along with all required supporting data.
供應商應按時、按規定數量提供100%的合格產品，并提供所有必要的支持?jǐn)?shù)據。
2. Suppliers shall immediately and openly communicate with Tesla any quality or delivery related problems and are expected to respond to issues immediately.
供應商應立即公開與特斯拉溝通任何與質量或交付有關的問題，并應立即對問題作出回應。
3. Suppliers shall leverage their expertise and provide feedback on part or process devised by Tesla to highlight concerns or improvements that could be made to meet quality requirements, reduce cost, time, yield, etc. Lack of feedback shall be deemed as acceptance of the design and process.
供應商應利用其專業知識，對特斯拉設計的零件或工藝提供反饋，以突出關注點或可進行的改進，以滿足質量要求，降低成本、時間和產量等。缺乏反饋應被視為對設計和工藝的接受。
4. Suppliers are strongly encouraged to apply continuous improvement techniques that impact quality, service and cost.
我們強烈鼓勵供應商應用影響質量、服務和成本的持續改進技術。
5. Suppliers shall maintain a contingency plan to satisfy Tesla’s requirements in the event of an emergency. These plans, and those of all sub-suppliers, are to be made available upon request to Tesla. Emergencies may include, but are not limited to, utility interruptions, labor shortages, key equipment failures and warranty returns.
供應商應保持一項應急計劃，以滿足特斯拉在緊急情況下的要求。這些計劃以及所有次級供應商的計劃應根據要求提供給特斯拉。緊急情況可能包括但不限于公用事業中斷、勞動力短缺、關鍵設備故障和保修退貨。
3.1.1 Senior Management Responsibilities
高級管理人員職責
Supplier Senior Management shall:
供應商高級管理層應：
1. Oversee the quality planning and quality system activities as well as all regulatory compliance activities.
監督質量策劃和質量體系活動，以及所有法規遵從活動
2. Ensure all Tesla documentation is understood and followed within the supplier’s organization.
確保在供應商的組織范圍內理解和遵守所有特斯拉文件。
3. Ensure adequate resources are provided to meet all Tesla requirements and all related departments are trained in regards to the requirements and guidelines of this document.
確保提供足夠的資源以滿足所有特斯拉的要求，并對所有相關部門進行有關
本文件要求和準則的培訓。
4. Ensure the control and retention of document copies and any subsequent revisions provided by Tesla.
確?？刂坪捅Ａ粑募北竞吞厮估峁┑娜魏魏罄m(xù)修訂。
5. Oversee quality of communication and documentation released to Tesla and ensure clear and concise information and information integrity.
監督向特斯拉發布的通信和文件的質量，確保信息的清晰和簡潔以及信息的完整性。
6. Ensure control and retention of documentation regarding regulatory compliance for the time periods required by specific regulations (up to 30 years after end of production in some cases).
確保在特定法規要求的時間段內（在某些情況下，生產結束后長達30年）控制和保留有關法規遵守的文件。
3.1.2 Confidentiality 保密性
In addition to the Non-Disclosure Agreement, the following is required:
除《保密協議》外，還需遵守以下規定：
1. The Supplier shall establish a system to manage confidentiality that begins at sourcing decision and continues through the life of the part.
供應商應建立一個從采購決策開始并持續到零件壽命的保密管理制度。
2. Any data, information, or knowledge (general and specific) obtained through activities with Tesla shall be securely controlled, treated with strict confidence,and properly destroyed when no longer necessary.
通過與特斯拉的活動獲得的任何數據、信息或知識（一般的和具體的）應受到安全控制，嚴格保密，并在不再需要時適當銷毀。
3. Any breach of confidentiality, or concerns, must be reported to Tesla management immediately.
任何違反保密規定的行為或擔憂，都必須立即報告給特斯拉管理層。
3.2 Quality Management System(QMS) Requirements 質量管理體系要求
1. The quality system shall be defined and documented to describe the requirements for all quality related activities.
應定義和記錄質量體系，以描述所有與質量有關的活動的要求。
2. The supplier shall establish, document, and maintain a quality management system as a means of ensuring that the product conforms to the specified requirements.
供應商應建立、記錄并保持一個質量管理體系，作為確保產品符合規定要求的手段。
3. Quality records shall be maintained to demonstrate conformance to specified requirements and the effective operation of the quality system.應保持質量記錄以證明符合規定的要求和質量體系的有效運行。
4. The quality system shall ensure all quality activities have been properly
implemented during trial builds and monitored thereafter.
質量體系應確保所有質量活動在試建期間得到適當?shù)膶?shí)施，并在此后進行監測。
5. The system shall, at a minimum, meet Tesla’s Supplier Handbook requirements. It is also desired that the quality system is certified to the ISO 9001 and/or ISO/TS 16949 standards.
該系統應至少滿足特斯拉供應商手冊的要求。此外，還希望該質量體系獲得ISO 9001和/或ISO/TS16949標準的認證。
6. Quality Reporting 質量報告：
The supplier shall use the Supplier Portal to submit all required documentation and evidence.
供應商應使用供應商門戶網站提交所有要求的文件和證據。
The supplier will also receive approval for individual tasks and part status through the Supplier Portal.
供應商還將通過供應商門戶網站獲得對個別任務和零件狀態的批準。
Extra data designated by Tesla may be required to be reported
特斯拉指定的額外數據可能需要報告。
3.2.1 Quality Activities 質量活動
The supplier is responsible for the following activities needed to ensure products are consistently manufactured to Tesla requirements.
供應商負責以下所需活動，以確保產品的生產始終符合特斯拉的要求。
1. Program Schedule 項目計劃
- The supplier shall establish advanced quality planning as part of the overall program based on timing provided by Tesla.
供應商應根據特斯拉提供的時間，建立先期質量策劃，作為整體項目的一部分。
2. Process Monitoring and Operator Instructions 過程監控和操作說明
- The supplier shall prepare documented process monitoring and operator
instructions for all employees having responsibilities for operation of a
process or processes.
供應商應為所有負責操作某項或多項過程的員工編制成文的過程監測和操作說明。
- These instructions shall be accessible at the workstation and include proper visual aids.
這些說明應可在工作站獲得，并包括適當?shù)囊曈X(jué)輔助教具。
3. Verification of Equipment Set-ups 設備作業準備的驗證
- Equipment set-ups shall be verified whenever a set-up is performed (e.g.,initial run of a lot, material changeover, tool change, etc.).
每當進行作業準備時（例如，一個批次的初始運行、材料更換、工具更換等），都應驗證設備作業準備情況。
- Change-over instructions shall be available for set-up personnel.
更換指導應當就位可供準備人員使用。
- First-off, last-off part comparisons are recommended.
推薦使用首件、末件對比。
4. Receiving Inspection 收貨檢驗
- The supplier shall ensure incoming product is inspected, or otherwise verified, as conforming to specified requirements.
供應商應確保對進貨產品進行檢查，或以其他方式驗證其是否符合規定要求。
5. In-Process Inspection and Test 過程檢驗和測試
- The supplier shall inspect and test the in-process product as required by the relevant control plan or documented procedures.
供應商應按照相關控制計劃或文件化程序的要求檢查和測試在制品。
6. Final Inspection and Test 最終檢驗和測試
- The supplier shall carry out all final inspections and testing in accordance with the relevant control plan or documented procedures.
供應商應按照相關的控制計劃或文件化的程序進行所有的最終和測試。
7. Inspection and Test Records 檢驗和測試記錄
- The supplier shall establish and maintain records which provide evidence that the product has been inspected and/or tested.
供應商應建立并保存記錄，以證明產品已經過檢查和/或測試。
8. Inspection Measuring and Test Equipment 檢驗測量和測試設備
- The supplier shall establish and maintain documented procedures to control, calibrate, and maintain inspection, measurement and testing equipment.
供應商應建立和維護形成文件的程序，以控制、校準和維護檢驗、測量和測試設備。
9. Internal Quality Audits 內部質量審核
- The supplier shall plan and implement internal quality audits to verify whether quality activities and related results comply with planned arrangements.
供應商應計劃并實施內部質量審核，以驗證質量活動和相關結果是否符合計劃安排。
- Results shall be made available to Tesla upon request.
應根據要求向特斯拉提供結果。
10. Quality Records 質量記錄
- Quality records shall be maintained to demonstrate conformance to specified requirements and the effective operation of the quality system.應保持質量記錄以證明符合規定的要求和質量體系的有效運行。
11. Engineering Change Order (ECO) Implementation
工程變更單（ECO）的實施
- The supplier shall have a system in place for the control and implementation of Engineering Changes. Process flow and standard timing must be made available on request.
供應商應建立一個控制和實施工程變更的系統。必須根據要求提供變更流程和標準時間。
12. Process Change Implementation 過程變更的實施
- The supplier shall have a system in place for the control and implementation of process changes.
供應商應建立一個控制和實施過程變更的系統。
13. Nonconforming Parts 不合格零件
- The supplier shall establish and maintain documented procedures to ensure that parts which do not conform to specified requirements are
prevented from unintended use, installation or shipment.
供應商應建立并保持形成文件的程序，以防止不符合規定要求的部件被意外使用、安裝或發運。
14. Packaging, Labeling, Preservation and Shipping
包裝、標簽、防護和發運
- The supplier shall establish and maintain documented procedures for handling, storage, packaging, preservation and delivery of product.
供應商應建立并保持關于產品的處理、儲存、包裝、防護和交付的文件化的程序。
15. Training and Qualification of Team Members
團隊成員的培訓和資格認證
- The supplier shall effectively manage a comprehensive training program
for all employees. Individual needs shall be identified through an evaluation process that includes references to retained employee training records.
供應商應有效管理針對所有員工的綜合培訓計劃。應通過評估過程來確定個人需求，包括參考所保留的員工培訓記錄。
- Employees working on Tesla projects are expected to have completed a
comprehensive training program which focuses on developing the employees’ capabilities and motivation.
從事特斯拉項目的員工應已完成全面的培訓計劃，該計劃的重點是發展員工的能力和動力。
- All training necessary to meet Tesla objectives shall be completed by the first off process trial.
所有達到特斯拉目標所需的培訓都應在第一次試生產前完成。
- The supplier should develop a method for documenting team members'
progress and capability.
供應商應制定一種方法來記錄團隊成員的進步和能力。
16. Identification and Traceability 標識和可追溯性
- The supplier is responsible for preparing the Inspection Standard. Identification and Traceability information should be included in the
original draft.
供應商負責準備檢驗標準。標識和可追溯性信息應包括在原始草案中。
- Identification and Traceability actions must comply with the requirements set on the Engineering Drawing and/or Inspection Standard.
標識和追溯行動必須符合工程圖和/或檢驗標準中規定的要求。
- Identification 標識
The supplier must adhere to the identification requirements specified on
the part drawing or Inspection Standard. In cases where there is no specification, the supplier must work closely with Tesla to determine the appropriate level of identification that must be agreed upon.
供應商必須遵守零件圖紙或檢驗標準中規定的標識要求。在沒有規范的情況下，供應商必須與特斯拉緊密合作，以確定必須遵守的適當?shù)臉?biāo)識等級。
- Traceability 可追溯性
Each supplier must control the traceability of their own and sub-suppliers
products, from received raw materials through shipping. Where appropriate, suppliers are encouraged to add serial numbers, or other forms of traceability to each part.
每個供應商必須控制他們自己和次級供應商產品的可追溯性，從收到原材料到運輸。在適當?shù)那闆r下，鼓勵供應商在每個零件上添加序列號，或其他形式的可追溯性。
17. Sub-Supplier Control 子供應商控制
- The role of the Tier 1 supplier in coordinating and guiding all sub-supplier quality assurance activities must be similar to the Tier 1 suppliers’
requirements in this document.
一級供應商在協調和指導所有次級供應商質量保證活動方面的作用必須與本文件中一級供應商的要求相似。
- The Tier 1 supplier is responsible for the part quality and production readiness of all sub-supplier’s (directed by Tesla or otherwise), as well as
evaluating all sub-supplier's parts / materials and conducting quality approvals.
一級供應商負責所有次級供應商（由特斯拉指定或其他）的零件質量和生產準備，以及評估所有次級供應商的零件/材料并進行質量審批。
- Tesla MUST NOT be delayed by a sub-supplier being unprepared for Mass Production start-up.
特斯拉絕對不能因?yàn)榇渭?jí)供應商沒有為批量生產的啟動做好準備而延誤。
18. Supplier Contact Sheet 供應商聯絡表
- A Supplier contact sheet shall be submitted to Tesla to identify key
personnel to be contacted in the event of a quality problem or concern.
應向特斯拉提交一份供應商聯系表，以確定在出現質量問題或擔心時
可聯系的關鍵人員。
- The contact sheet shall be re-submitted to Tesla as changes occur.
聯系表應在發生變化時重新提交給特斯拉。
19. Annual Validation 年度確認
- Suppliers may be required to perform annual assessments per the direction of Tesla.
供應商可能被要求按照特斯拉的規定進行年度評估。
- Assessments may include, but are not limited to: On-Going Reliability
Testing (ORT), layout, testing as possibility, etc.
評估可能包括，但不限于：持續的可靠性測試（ORT），布局，測試的可能性等等。
20. Regulatory Compliance Management Process (RCMP)
監管合規管理流程
- Suppliers shall implement an RCMP to ensure that pertinent product substance data is gathered from their supply chains, reviewed for accuracy and adherence to data structure requirements, consolidated into a single compliance profile for each product and submitted to Tesla in a timely manner.
供應商應實施RCMP，以確保從其供應鏈中收集相關的產品物質數據，審查其準確性和對數據結構要求的遵守情況，并將每個產品的合規情況匯總到一個單一的檔案中，并及時提交給特斯拉。
3.3 Industry Standards 行業標準
Where applicable to their business, suppliers shall maintain the latest revisions of the standards shown below. Applicable assessments must be conducted annually at a minimum and the results made available to Tesla.在適用于其業務的情況下，供應商應保持下列標準的最新修訂版。適用的評估必須至少每年進行一次，并將評估結果提供給特斯拉。
1. AIAG - Advanced Product Quality Planning (APQP) and Control Plan
先期產品質量策劃和控制計劃
2. AIAG - Failure Mode & Effects Analysis (FMEA) Reference Manual
失效模式計后果影響分析（FMEA）
3. AIAG - Measurement Systems Analysis (MSA) Reference Manual
測量系統分析（MSA）
4. AIAG - Production Part Approval Process (PPAP) 生產零件批準程序
5. AIAG - Statistical Process Control (SPC) 統計過程控制
6. CQI-09 - Heat Treat System Assessment 熱處理系統評估
7. CQI-11 - Special Process: Plating System Assessment
特殊工藝：電鍍系統評估
8. CQI-12 - Coating System Assessment 涂裝系統評估
9. CQI-15 - Welding System Assessment 焊接系統評估
10.CQI-17 - Special Process: Soldering System Assessment
特殊工藝：錫焊系統評估
11.CQI-23 - Molding System Assessmet 注塑系統評估
Section 4 Supplier Assessment and Qualification
第四節 供應商評估和資格認證
The following is a guideline of the requirements for supplier evaluations, including use of Tesla sourcing, parts and process audits, process sign-off audits and supplier feedback.
以下是對供應商評估要求的指導，包括使用特斯拉采購、零件和過程審核、過程驗收審核和供應商反饋。
4.1 Assessment and Qualification Process 評估和資格認證過程
4.1.1 Supplier Assessment 供應商評估
An on-site evaluation may be performed during Tesla’s planning stage for each potential new supplier, in order to estimate the level of success of the program associated with each supplier. When the assessment is complete, the total score will be categorized as follows:
在特斯拉的計劃階段，可對每個潛在的新供應商進行現場評估，以估計與每個供應商相關的計劃的成功水平。評估完成后，總分將被分類如下：
|
91% - 100% |
Exceptional 卓越供應商 |
|
81% - 90% |
Preferred Supplier 首選供應商 |
|
71% - 80% |
Good Supplier 良好供應商 |
|
61% - 70% |
Fair Supplier 中等供應商 |
|
< 60% |
Unacceptable 不接受 |
4.1.2 Supplier Qualification and Nomination 供應商資格認證和提名
The criteria for evaluation will consider the following:
評價的標準將考慮以下幾點
- Engineering 工程
- Financial Stability 財務穩定性
- Logistics 物流
- Manufacturing Processes 制造過程
- Piece Price Cost 單件價格成本
- Program Management 項目管理
- Quality 質量
- Supplier Management 供應商管理
- Tool Cost 工具成本
- Tool Management 工具管理
The result of the sourcing audit (if required) will be considered during the supplier nomination process. If the assessment shows satisfactory results and all commercial points are in order, the supplier will be qualified and added to Tesla’s approved suppliers list。
采購審核的結果（如果需要）將在供應商提名過程中得到考慮。如果評估結果令人滿意，且所有商業點都符合要求，則該供應商將獲得資格，并被列入特斯拉的認可供應商名單。
4.1.3 Assessment Corrective Action 評估糾正措施
1. In the event the assessment reveals that corrective actions must be completed before a supplier can be qualified, an action plan will be requested from the supplier for the elements that were identified during the assessment.
如果評估顯示，在供應商獲得資格之前必須完成糾正措施，則將要求供應商
就評估中發現的內容提供行動計劃。
2. The supplier shall provide a corrective action plan to Tesla within 14 days of notification, stating clearly the corrective actions to be taken and indicating the planned implementation date for each corrective action.
供應商應在接到通知后的14天內向特斯拉提供一份糾正措施計劃，明確說明
將采取的糾正措施，并指出每項糾正措施的計劃實施日期。
3. The supplier shall update Tesla at planned intervals on the progress for the corrective action.
供應商應按計劃的時間間隔向特斯拉更新糾正措施的進展。
4. The supplier shall notify Tesla when all corrective actions have been implemented.
供應商應在所有糾正措施實施完畢后通知特斯拉。
5. Once the corrective action implementation is complete, Tesla may decide to reaudit the supplier. Alternatively, verification of the corrective actions may take place during subsequent audits.
一旦糾正措施實施完畢，特斯拉可決定對該供應商進行重新審核。另外，在
隨后的審核中也可對糾正措施進行驗證。
4.2 Audits 審核
4.2.1 Process Audits 過程審核
- During New Product Introduction (NPI) or modification, Tesla may decide to carry out a process audit. This audit covers both documentation and process implementation, and will be carried out at a suitable point in time.
在新產品引進（NPI）或修改期間，特斯拉可能決定進行過程審核。該審核包括文件和過程實施，并將在一個合適的時間點進行。
- Tesla may decide to re-audit once all corrective actions have been implemented or at an appropriate point in time.
特斯可能決定在所有糾正措施實施后或在一個適當?shù)臅r(shí)間點重新進行審核。
- Suppliers must assign an internal audit champion responsible for conducting, at minimum, annual audits to ensure all processes meet Tesla’s requirements.
供應商必須指定一名內部審核負責人，負責在以下方面進行審核，至少要進行年度審核，以確保所有過程符合特斯拉的要求。
4.2.2 Safety Critical Audits 安全關鍵審核
Tesla will carry out audits on safety critical components and processes, at intervals deemed necessary by Tesla. As a result of the audit, the supplier may be issued with nonconformances. The Supplier shall be required to develop and submit a corrective action plan to Tesla within 14 days of the audit. The supplier shall provide regular updates on corrective action and implementation until the issues are closed.
特斯拉將按照特斯拉認為必要的時間間隔，對安全關鍵零件和過程進行審核。作為審核的結果，供應商可能會被發出不符合要求的通知。供應商應被要求在審核后14天內制定并向特斯拉提交一份糾正措施計劃。供應商應定期提供有關糾正措施和實施的最新情況，直至問題得到解決。
4.3 Supplier Risk 供應商風險
Suppliers may be assessed on their risk to the overall success of a Tesla project. Suppliers that are deemed a risk, or a potential risk, may be required to participate in additional monitoring and development activities, as decided appropriate by Tesla.
供應商可能會被評估其對特斯拉項目的整體成功的風險。被認為是風險或潛在風險的供應商，可能被要求參與特斯拉決定的額外監測和開發活動。
4.4 Supplier Performance Feedback 供應商業績反饋
Suppliers will be provided with feedback and assigned a score according to their performance. Poor performance can result in disqualification of the supplier and removal from Tesla’s approved suppliers List. Suppliers may be asked to supply a corrective action plan addressing problem areas in order to remain eligible for continued or future business. Suppliers will be assigned one of four following classifications as a result of their ongoing performance.
供應商將得到反饋，并根據他們的表現分配一個分?jǐn)?shù)。表現不佳的供應商可能會被取消資格，并從特斯拉批準的供應商名單中刪除。供應商可能會被要求提供一份針對問題領域的糾正措施計劃，以保持繼續或未來業務的資格。根據供應商的持續表現，他們將被分配到以下四個分類中的一個
1. Preferred: Strategic relationship built on a variety of factors.
首選：建立在各種因素上的戰略關系。
2. Approved: Supplier meets quality and service requirements.
批準：供應商符合質量和服務要求。
3. On Hold: Supplier won’t receive new business until issues are resolved. 暫停：在問題得到解決之前， 供應商不會收到新的業務
4. Phase Out: Supplier will eventually no longer be used to supply selected part.
淘汰：供應商最終將不再被用于供應選定的零件。
Section 5 General Requirements
第五節 通用要求
5.1 Safety & Critical Characteristics 安全和關鍵特性
1. Critical characteristics shall be identified based on features that are critical to safety, reliability, function or fit and/or by FMEA methods to identify important features of high risk.
關鍵特性應根據對安全性、可靠性、功能或適應性至關重要的特性和/或通
過FMEA方法來確定高風險的重要特性。
2. Critical characteristics shall be identified on the Drawing and Inspection Standard using the symbols in Section 7.3
關鍵特性應使用第7.3節中的符號在圖紙和檢驗標準上進行標識。
3. For critical features, Tesla requires the submission of Process Performance (Ppk) data for trial builds and Process Capability (Cpk) data for parts produced after start of production (refer Section 6.4.4 for details). Trial builds include all builds from the prototype stage through start of production.
對于關鍵特征，特斯拉要求提交試制的過程性能（Ppk） 數據和生產開始后生產的零件的過程能力（Cpk）數據（詳見6.4.4節）。試制包括從原型樣件階段到量產的所有構建。
4. Suppliers must identify critical characteristics on their Inspection Standards, Control Plans, Work Instructions, Process Flow Charts, and other relevant documentation also using the symbols shown in Section
供應商必須在其檢驗標準、控制計劃、作業指導書、過程流程圖和其他相關
文件中也使用第7.3節所示的符號來識別關鍵特征。
5.1.1 Safety Critical Components and Characteristics
安全關鍵部件和特性
Tesla requires suppliers of safety critical components (components that contain safety critical characteristics, as indicated on the components drawing using the symbols defined in Section 7.3) to demonstrate that they control all aspects of the manufacturing process. The following requirements shall apply:
特斯拉要求安全關鍵部件（包含安全關鍵特性的部件，在部件圖紙上使用第7.3節中定義的符號表示）的供應商證明他們控制了制造過程的所有方面。應適用以下要求：
1. When assigning personnel to the production of a safety critical component, the supplier shall:在指派人員生產安全關鍵部件時，供應商應
- Ensure that all personnel involved in the manufacturing and testing of
these components have completed designated training and demonstrate
the required level of skill and knowledge to carry out the process.
確保所有參與制造和測試這些部件的人員都已完成指定的培訓，并表現出所需的技能和知識水平，以執行該過程。
- Maintain training records for all employees that clearly show the employees ability to work on a product with safety critical characteristics.
保持所有員工的培訓記錄，明確顯示員工有能力在具有安全關鍵特性的產品上工作。
2. All test equipment used to verify a safety critical component shall be listed on the Control Plans.
所有用于驗證安全關鍵部件的測試設備應在控制計劃中列出。
3. All test equipment and machinery used in the manufacturing of a safety critical component have an associated preventative maintenance plan.
所有用于制造安全關鍵部件的測試設備和機器都有相關的預防性維護計劃。
4. No alterations to the manufacturing process are permitted without approval from Tesla. Approval must be obtained prior to shipment of parts and may require a new Tesla Qualification Process (TQP) submission; refer Section 6 for details.
未經特斯拉批準，不得對制造過程進行改動。必須在零件裝運前獲得批準，并可能需要提交新的特斯拉資格認證程序（TQP）；詳情請參閱第6節。
5. The supplier shall audit processes used to produce safety critical components at regular intervals. Records shall be available to show the audit findings and corrective actions.
供應商應定期審核用于生產安全關鍵部件的過程。應提供記錄以顯示審核結果和糾正措施。
6. Where safety critical characteristics are subject to a sub-supplier’s process control plan, Tesla requirements shall be applied to the sub-supplier.
當安全關鍵特性受制于次級供應商的過程控制時計劃，特斯拉的要求應適用于分供方。
7. The supplier shall be able to demonstrate process capability for processes used to produce parts with safety critical characteristics. Each characteristic must have a Process Capability, in accordance with requirements in Section 6.4.4, or documented inspection and / or verification date to show appropriate process control.
供應商應能證明用于生產具有安全關鍵特性的零件的過程的過程能力。根據第6.4.4節的要求，每個特性都必須有一個過程能力，或有記錄的檢查和/或驗證日期，以顯示適當?shù)倪^(guò)程控制。
8. Notification must be provided for any rework that could impact a safety critical characteristic. Where practical, a Tesla approved indelible mark shall be used to identify reworked parts. All records shall be retained for part identification.
對于任何可能影響安全關鍵特性的返工，必須提供通知。在可行的情況下，應使用特斯拉批準的永久標記來識別返工的部件。所有的記錄都應保留，以便識別零件。
9. Safety critical components have batch control and/or traceability requirements which must be met, as outlined in BMS-0000151 -Traceability Specifications.
安全關鍵部件具有必須滿足的批次控制和/或可追溯性要求,如 BMS-0000151-可追溯性規范中所述。
5.2 Change Control 變更控制
5.2.1 ECO - Engineering Change Order 工程變更單
ECO’s are issued to suppliers by Tesla for changes to the design drawing or specifications.They can apply to any part, from the time of drawing issuance through the life of the part.
特斯拉向供應商發放ECO，用于更改設計圖紙或規格。它們可以適用于任何部件，從圖紙發布之時到零件的生命周期。
1. The supplier shall have a system in place for the control and implementation of engineering changes.
供應商應建立一個控制和實施工程變更的系統。
2. The supplier must receive approval of their project plan prior to the start of implementation.
在開始實施之前，供應商必須得到其項目計劃的批準。
3. Prior to implementation of an ECO, it is the supplier's responsibility to update any internal standards, Inspection Standards, Control Plans, etc. to reflect ECO changes and submit to Tesla for approval.
在實施ECO之前，供應商有責任更新任何內部標準、檢驗標準、控制計劃等，以反映ECO的變化，并提交給特斯拉進行審批。
4. ECO’s should be implemented in a timely manner, in accordance with instructions from Tesla.
ECO應按照Tesla的指示及時實施。
5. ECO’s shall not increase the applicable Purchase Price or change the applicable Schedule unless such change is expressly approved in writing by an authorized Tesla representative.
除非得到特斯拉授權代表的明確書面批準，否則ECO's不得提高適用的購買
價格或改變適用的時間表。
5.2.2 PCR - Process Change Request - 過程變更請求
PCR’s are used to ensure part quality by identifying and controlling any process changes following initial TQP approval, and to ensure adequate communication with Tesla.
PCR用于識別和控制最初TQP批準后的任何過程變化，以確保零件質量，并確保與Tesla的充分溝通。
1. The following are guidelines only, subject to Tesla approval:
以下僅是指導方針，須經特斯拉批準：
a. PCR approval is required for: 以下情況需要PCR的批準
- Addition or replacement of tooling or machines for mass production.
增加或更換用于大規模生產的工具或機器。
- Manufacturing location changes within a plant or to a new location.
在一個工廠內改變制造地點，或到一個新的地點。
- Significant manpower change (additional shift, etc.)
重大的人力變化（增加班次等）。
- Changes in approved production process, tooling and/or layout, process
flow, inspection & testing etc. in sub-supplier approved production
processes.
在次級供應商批準的生產過程中，對批準的生產過程、工具和/或布局、工藝流程、檢查和測試等的改變。
- Change of sub-supplier for parts or raw materials.
改變零件或原材料的次級供應商。
b. PCR approval is not required for:
以下情況不需要PCR的批準：
- Relocation of small tools, jigs, fixtures that are not part of the main
production line and do not affect process or part quality.
搬遷不屬于主要生產線且不影響過程或零件質量的小型工具、夾具、固定裝置。
- Regular replacement of perishable tools or preventative/predictive
maintenance.
定期更換易損工具或進行預防性/預測性維護。
- Minor day-to-day Kaizen activity.
小型的日常改善活動。
2. The “Completed by Supplier” portion of the Plan Stage on the PCR form, along with supporting documentation, is to be completed and submitted to Tesla in advance. The supplier must not proceed with any process change without having approval from Tesla on the PCR.
PCR表格中計劃階段的 "由供應商完成 "部分，連同支持性文件，應提前完成并提交給特斯拉。在未得到特斯拉對PCR的批準之前，供應商不得進行任何過程變更。
3. Tesla will determine what requirements (trial quantity, documents, data, etc.) will be necessary for PCR approval.
特斯拉將確定對PCR的批準有哪些要求（試驗數量、文件、數據等）。
4. The required parts/data will be reviewed by Tesla and a decision made whether to proceed with a trial or mass production; neither can begin until an approved PCR is received from Tesla.
所需的部件/數據將由特斯拉審查，并決定是否進行試驗或大規模生產；在收到特斯拉批準的PCR之前，兩者都不能開始。
5. The “Mass Production” section of the PCR must be completed and sent to Tesla prior to the initial shipment.
必須填寫PCR的 "大規模生產 "部分，并在首次裝運前將其發送給特斯拉。
6. Tesla will record the initial vehicle number, sign and return the completed PCR to the supplier.
特斯拉將記錄最初的車輛編號，簽署并將完成的PCR返回給供應商。
7. PCR’s shall not increase the applicable Purchase Price or change the applicable Schedule unless such change is expressly approved in writing by an authorized Tesla representative.
除非得到特斯拉授權代表的明確書面批準，否則PCR公司不得提高適用的購買價格或改變適用的時間表。
5.3 Control Plans 控制計劃
A Control Plan is used to define all key process and part control points, control criteria such as location, target, method and frequency of checks, from incoming material to shipping of finished goods. It is recommended that the supplier use cross functional teams to develop any Control Plans.控制計劃是用來定義所有關鍵的過程和零件控制點，控制標準，如位置、目標、方法和檢查頻率，從進料到成品運輸。建議供應商使用跨職能團隊來制定任何控制計劃。
1. The supplier shall prepare a Control Plan, as specified by Tesla, for all products supplied during a TQP development stage or stages. Several control plans are used throughout the TQP approval process and are detailed further in their respective locations.
供應商應按照特斯拉的規定，為在TQP開發階段或各階段提供的所有產品編制一份控制計劃。在整個TQP審批過程中使用了若干控制計劃，并在其各自的位置進一步詳細說明。
2. The Control Plan should be updated as necessary for process changes or corrective actions.
控制計劃應根據工藝變化或糾正措施的需要進行更新。
3. The Control Plan may be submitted in the supplier’s format; however, it must meet all of the requirements below:
控制計劃可以用供應商的格式提交；但是，它必須滿足以下所有要求：
- The identification of all special & critical Characteristics using the correct symbols.
使用正確的符號識別所有特殊和關鍵特征。
- The identification of other specific characteristics on the part inspection standard.
對零件檢驗標準的其他具體特征的鑒定。
- Identification of measurement equipment or data collection where applicable.
在適用的情況下，確定測量設備或數據收集。
- Detailed reaction plans with designated responsibilities.
有指定責任的詳細反應計劃。
- Process, machine, and part potential failure modes must be identified and utilized to develop the Control Plan in order to ensure that potential failure causes can be controlled and monitored.
必須確定并利用過程、機器和零件的潛在失效模式來制定控制計劃，以確保潛在的失效原因能夠得到控制和監測。
- The Control Plan should consist of additional controls, inspection audits, and testing to identify non-conformances during the production process.
控制計劃應包括額外的控制、檢驗審核和測試，以確定生產過程中的不合格情況。
- Consideration should be given to the build quantities required when
establishing inspection frequencies.
在確定檢查頻率時，應考慮到所需的生產數量。
5.4 MSA - Measurement Systems Analysis 測量系統分析
1. Suppliers are expected to provide all technical staff and facilities required todevelop robust part and process control systems.
供應商應提供開發穩健的零件和過程控制系統所需的所有技術人員和設施。
- When control systems involve the acquisition of information (e.g.
measurement data), the supplier shall ensure the information is at a
quality level that allows for valid data analysis.
當控制系統涉及信息（如測量數據）的獲取時，供應商應確保信息的質量水平能夠進行有效的數據分析。
- The measurement system used to acquire part and process information
shall be developed, validated, and available for use to support all associated control plans and inspection standards.
用于獲取零件和過程信息的測量系統應得到開發、確認，并可用于支持所有相關的控制計劃和檢驗標準。
2. Suppliers shall adhere to all requirements set in the following standards, found on the Supplier Portal:
供應商應遵守以下標準中的所有要求，可在供應商門戶網站上找到：
- TS-0003139 - Gauge and Check Fixture Standard 量具和檢查夾具標準
- TS-0003403 - Dimensional Data Transfer 尺寸數據傳輸
- TS-0003413 - Measurement Systems Analysis Standard 測量系統分析
- TS-0003552 - GRR 量具重復性和再現性
- TS-0003687 - Gauge and Check Fixture Buyoff Check Sheet
量具和檢查夾具買斷檢查表
- TS-0003986 - MDSS
3. Validation of the measurement system shall include, but is not limited to, evidence of calibration certification traceable to a national or international certifying body, control and maintenance planning, proper use instructions, and validation of the quality of data collected (e.g. GR&R).
測量系統的驗證應包括但不限于可追溯到國家或國際認證機構的校準證明、控制和維護計劃、正確的使用說明以及對所收集數據質量的驗證（如GR&R）。
4. Suppliers must submit requests in writing to Tesla through the PCR process to obtain approval prior to implementing any changes. Changes may be needed as a result of:
供應商必須通過PCR程序向特斯拉提交書面請求，以便在實施任何變更之前獲得批準。由于以下原因，可能需要進行更改：
- Engineering Change Order (ECO) 工程變更單
- Part Inspection Standard change 零件檢驗標準的改變
- Process change 過程變更
- Repair (major damage; outside of normal maintenance)
返修（重大損壞；正常維修之外的）
5. Before disposing of any Tesla owned equipment or tools (eg. checking fixtures,etc.), the supplier must contact their Tesla representative and receive written authorization.
在處理任何特斯拉擁有的設備或工具（如檢查夾具等）之前，供應商必須與他們的特斯拉代表聯系并獲得書面授權。
5.5 MPR - Mating Parts Request 配套零件要求
The MPR form gives the supplier the opportunity to request parts for quality purposes. Tesla will provide mating parts when there is good reason, it is feasible, and cost effective. The Tesla format provided in BMS-0000259 - Supplier Quality Toolkit must be used.
MPR表格讓供應商有機會為質量目的要求提供零件。特斯拉將在有充分理由、可行和具有成本效益的情況下提供配套零件。必須使用BMS-0000259 - 供應商質量工具包中提供的特斯拉格式。
1. Tesla will consider any MPR and respond by supplying mating parts, or a reasonfor declining the request.
特斯拉將考慮任何MPR，并通過提供匹配的零件或拒絕請求的理由作出回應.
2. Tesla will have the final decision regarding the necessity and use of mating parts.
特斯拉將對配合部件的必要性和使用有最終決定權。
3. If Tesla grants a mating part to a supplier, the supplier must ensure that the mating parts used for their testing and other purposes are always the latest version.
如果特斯拉將配套部件授予供應商，供應商必須確保用于其測試和其他目的
的配套部件始終是最新版本。
4. If there are significant changes to the supplier-provided part that substantiates a need for a new mating part, the supplier must submit a new request.
如果供應商提供的零件有重大變化，證明需要新的配合零件，供應商必須提
交新的申請。
5. Mating parts that have been provided must be returned to Tesla or disposed of as directed by Tesla.
已經提供的配套零件必須退回給特斯拉或按照特斯拉的指示進行處理。
5.6 Transportation Requirements 運輸要求
To ensure part quality, the supplier shall establish a system to assure that all parts shipped to Tesla meet the below requirements. Documentation of all Tesla transportation requirements shall be maintained by Tesla’s part number.
為確保零件質量，供應商應建立一個系統，以確保運往特斯拉的所有零件符合以下要求。特斯拉所有運輸要求的文件應按特斯拉的零件編號保存。
5.6.1 Packaging 包裝
1. Tesla standards Packaging Material and Equipment Codes, Domestic Expandable Standards and Overseas Expendable Standards shall be followed.
應遵循特斯拉標準《包裝材料和設備規范》、《國內可擴展標準》和《海外消耗品標準》。
- All pack size, packaging, container or pallet dimensions and/or type shall be pre-approved by the appropriate Tesla representative(s).
所有的包裝尺寸、包裝、容器或托盤的尺寸和/或類型應事先得到特斯拉有關代表的批準。
- The supplier must receive approval for temporary use of packaging which does not meet requirements.
如果臨時使用不符合要求的包裝，供應商必須得到批準。
2. Considerations must be taken when selecting packaging types to ensure adequate part protection, safety concerning hazardous materials and cost are adequately addressed.
在選擇包裝類型時，必須考慮到確保充分的部件保護、有關危險材料的安全和成本得到充分解決。
3. Submission requirements may be found under Section 6.4.7.
提交要求可在第6.4.7節中找到。
4. Tesla packaging standards for both Domestic Expendable Packaging and Overseas Expendable Packaging are located on the Supplier Portal. Labeling procedures should have annual audits of label content to confirm that all information on the label is correct and up to date.
國內消耗性包裝和海外消耗性包裝的特斯拉包裝標準都位于供應商門戶網站上。
5.6.2 Labeling 標簽
There are two methods to comply with Tesla’s labeling requirements:
有兩種方法可以遵守特斯拉的標簽要求：
1. Suppliers providing advance shipment data via the Supplier Portal must print the shipping labels directly from the Portal and attach to the Product (Pallet and Box labels). No other label formats will be considered compliant.
供應商通過供應商門戶網站提供預先裝運數據，必須直接從門戶網站打印裝運標簽并附在產品上（托盤和箱子標簽）。其他標簽格式將不被視為合規。
2. Suppliers providing advance shipment data via ASN EDI must generate their own shipping labels (Pallet and Box) according to Tesla Standards BMS-0000003 - Shipping Label Specification and submit the labels for approval by the Tesla EDI team. (Please reach out to TeslaEDI@teslamotors.com for more detail).
供應商通過ASN EDI提供預先發貨數據，必須根據特斯拉標準BMS-0000003-發貨標簽規范生成自己的發貨標簽（托盤和箱子），并提交標簽供特斯拉EDI團隊批準。(請聯系 TeslaEDI@teslamotors.com 以了解更多細節）。
Labeling procedures should have annual audits of label content to confirm that all information on the label is correct and up to date.
標簽程序應該對標簽內容進行年度審計，以確認標簽上的所有信息都是正確和最新的。
5.6.3 Preservation 防護
1. The supplier shall establish and maintain a material handling system that eliminates the potential for damage throughout all operations and transportation to Tesla facilities.
應商應建立和維護一個材料處理系統，在所有操作和運輸?shù)教厮估O(shè)施的過程中消除損壞的可能性。
2. The supplier shall systematically review material handling processes and equipment to prevent damage to in-process parts and finished goods.供應商應系統地審查材料處理過程和設備，以防止對在制品和成品的損害。
3. Adhesives and other perishable or environmentally sensitive products should be stored and transported in the appropriate environmental conditions.
粘合劑和其他易腐爛或環境敏感的產品應在適當?shù)沫h(huán)境條件下儲存和運輸。
4. Suppliers should consider Tesla usage in order to maintain the required shelf life for material performance.
供應商應考慮特斯拉的使用，以保持材料性能所需的保質期。
5.6.4 Shipping 發運
1. The supplier shall ship all materials in conformance with Tesla transportation routings.
供應商應按照特斯拉的運輸路線運送所有材料。
2. The supplier shall maintain a file that includes documentation demonstrating that it has adhered to specified routings and shipping methods.
供應商應保存一份檔案，其中包括證明其遵守規定路線和運輸方法的文件。
3. The supplier shall have facilities adequate for shipping and receiving operations; at a minimum, the supplier shall assure that the number of doors / bays is adequate for shipping and receiving schedules, and that dock areas are well-lit and maintained with enough space for shipping and receiving activities.
供應商應擁有足夠的設施用于裝運和接收業務；至少，供應商應保證門/托架的數量是碼頭區照明良好，并有足夠的空間供裝運和接收活動使用。
4. The supplier is responsible for the loading, blocking, and bracing of cargo at the time of loading. For ocean or intermodal truck/rail shipment modes, the supplier is required to have appropriate load blocking and bracing supplies, and trained staff to facilitate timely loading. The mode of transit is determined by Tesla Logistics. Logistic_Inbound@tesla.com should be contacted with any questions.
供應商負責在裝貨時對貨物進行裝載、阻擋和支撐。對于海運或多式聯運的卡車/鐵路運輸模式，供應商需要有適當?shù)呢浳镒钃鹾椭斡闷?，以及?xùn)練有素的工作人員，以促進及時裝載。運輸方式由特斯拉物流公司決定。如有任何問題，請聯系Logistic_Inbound@tesla.com。
5. Suppliers must execute shipments according to Tesla’s demand releases, which are transmitted by EDI (830 Forecast and 862 Firm Demand) or through the Tesla Supplier Portal.
供應商必須根據特斯拉的需求發布來執行發貨，這些需求通過EDI（830預測和862確定需求）或通過特斯拉供應商門戶網站傳送。
- EDI:
Please contact your Planning contact and TeslaEDI@teslamotros.com for
setup and guidance.
請聯系你的計劃聯系人和TeslaEDI@teslamotros.com，以獲得設置和指導。
-Supplier Portal 供應商門戶網站：
Pls contact your Tesla Planning contact and representative and SupplierPortal@teslamotors.com for access and guidance.
請聯系你的特斯拉計劃代表和SupplierPortal@teslamotors.com，以獲取和指導。
6. Suppliers must submit an Advanced Ship Notice (ASN) for each production shipment to Tesla and follow the Shipment Labels requirement. This is required even in cases when the supplier is managing the shipment. Suppliers can submit an ASN in two ways：
供應商必須為每批運往特斯拉的生產貨物提交一份提前發貨通知（ASN），并遵守發貨標簽的要求。即使在供應商管理貨物的情況下，也必須這樣做。供應商可以通過兩種方式提交ASN：
EDI
Suppliers choosing EDI 856 for ASN must generate their own shippinglabels up to Tesla specification and complete a verification process with
the Tesla EDI team. Please contact your Planning contact and
TeslaEDI@teslamotros.com for setup and guidance.
選擇EDI 856的ASN的供應商必須自己生成符合特斯拉規格的運輸標簽，并完成與特斯拉EDI團隊的驗證過程。請聯系您的計劃聯系人和
TeslaEDI@teslamotros.com，以獲得設置和指導。
Supplier Portal 供應商門戶網站
Suppliers choosing Portal must enter shipment data and print the labels from the Supplier Portal. Please contact your Planning contact and
SupplierPortal@teslamotors.com for access and guidance
選擇門戶網站的供應商必須在供應商門戶網站上輸入裝運數據并打印標簽。請聯系您的計劃聯系人和SupplierPortal@teslamotors.com，以獲得訪問和指導。
7. Suppliers shipping to other vendors or receiving material from a vendor on Tesla’s behalf must complete the shipping and receiving process through the Tesla Supplier Portal only. Please reach out to your Purchasing contact for Tesla’s subcontract shipping and receiving procedures.
供應商向其他供應商發貨或代表特斯拉從供應商處接收材料，必須只通過特斯拉供應商門戶網站完成發貨和接收程序。請與您的采購聯系人聯系，了解特斯拉的分包運輸和接收程序。
5.6.5 Invoicing 開具發票
Tesla has implemented e-invoicing for direct material with purchase order numbers starting with 72, 74, or 77. Suppliers need to submit all invoices through one of the following three channels. Contact e invoicing@teslamotors.com for specifications and detailed instructions
特斯拉已對采購訂單號以72、 74或77開頭的直接材料實施電子發票。供應商需要通過以下三個渠道之一提交所有發票。請聯系e-invoicing@teslamotors.com，了解規格和詳細說明。
1. EDI,
2. CSV Upload CSV上傳。
3. Shipment Flip in Tesla Supplier Portal.特斯拉供應商門戶網站中的發貨翻頁。
5.6.6 Certificate of Compliance 合格證書
Suppliers may be requested to submit certificates of compliance, showing a record that all part/materials were processed in full compliance with all drawing specifications and/or technical provisions described in the Purchase Order. Suppliers should refer to BMS- 0000342 - Certificate of Compliance for full details.
供應商可能會被要求提交合規證書，以證明所有部件/材料的加工完全符合采購訂單中描述的所有圖紙規格和/或技術規定。供應商應參考BMS- 0000342 - 合格證的全部細節。
5.7 Regulatory Compliance 監管合規
Suppliers of Components may be required to provide evidence of compliance conformance outlined by international bodies in support of Tesla vehicle sales. Compliance to regulatory compliance is the responsibility of the supplier who will present to Tesla electronic copies of compliance certificates to the Supplier Portal.
組件供應商可能被要求提供國際機構概述的合規性證據，以支持特斯拉汽車銷售。遵守法規是供應商的責任，他們將向特斯拉的供應商門戶網站提交合規證書的電子副本。
5.7.1 Material Regulatory Compliance 材料監管合規
Tesla suppliers are required to adhere to international material compliance requirements in order to meet regional material and environmental regulations. This is a mandatory requirement for all suppliers who supply products or raw materials to Tesla; vendors who provide only non-material related services are exempted. Specific requirements may be found in BMS-0000408 - Material Compliance Reporting.
特斯拉供應商必須遵守國際材料合規要求，以滿足地區材料和環境法規。這是對所有向特斯拉提供產品或原材料的供應商的強制性要求；只提供非材料相關服務的供應商則被豁免。具體要求可在BMS-0000408-材料合規報告中找到
5.8 Nonconforming Parts 不合格的零件
This section covers the procedures and disposal for nonconforming parts at the supplier manufacturing site and nonconforming parts sent to Tesla.本節涵蓋了供應商生產現場的不合格零件和送往特斯拉的不合格零件的程序和處置。
1. If a nonconforming part is identified at the supplier manufacturing site, and has already been shipped to Tesla, immediate e-mail notification must be sent to the Tesla to intercept and quarantine the parts upon arrival. A Notice of Suspect Shipment / Deviation Request form must be submitted using Tesla’s format provided in BMS-0000259 - Supplier Quality Toolkit.
如果在供應商生產現場發現了不合格的零件，并且已經運到了特斯拉，必須立即向特斯拉發送電子郵件通知，以便在零件到達后進行攔截和檢疫。必須使用BMS-0000259-供應商質量工具包中提供的特斯拉格式，提交一份可疑貨 物通知/偏差請求表。
2. If a nonconforming part is identified at Tesla, the supplier will be notified via email and / or the Tesla SCAR Database.
如果在特斯拉發現不合格零件，將通過電子郵件和/或特斯拉SCAR數據庫通知供應商。
3. When a nonconformance is discovered, the supplier is by default assumed responsible for the faults. Investigations shall be conducted by the supplier until the cause of the nonconformance has been identified and a plan proposed to prevent the problem from occurring again.
當發現不符合要求的情況時，供應商被默認為對故障負責。供應商應進行調查，直到找出不合格的原因，并提出防止問題再次發生的計劃。
4. Tesla reserves the right to charge suppliers for costs incurred as a result of receiving nonconforming parts / material, in accordance with the charge back policy in the General Terms.
特斯拉保留向供應商收取因收到不合格的零件/材料而產生的費用的權利，這符合一般條款中的收費政策。
5.8.1 Deviation Approval偏差批準
In some cases, Tesla may approve parts which do not fully adhere to the specifications but that do not affect fit, function, material compliance requirements or safety, to be used “as is,”. To obtain approval for a deviation to ship such parts, the Notice of Suspect Shipment / Deviation Request form must be completed and submitted to Tesla. Approval from Tesla is required before supplying any nonconforming product under a Deviation Approval.
在某些情況下，特斯拉可能會批準不完全符合規格但不影響配合、功能、材料符合性要求或安全的部件， "按原樣 "使用。為獲得對此類零件發貨的偏差批準，必須填寫可疑發貨通知/偏差請求表并提交給特斯拉。在根據偏差批準提供任何不符合要求的產品之前，必須得到特斯拉的批準。
5.8.2 SCAR - Supplier Corrective Action Request
供應商糾正措施請求
A SCAR will be issued to notify the supplier that Tesla has received a nonconforming part.When the SCAR is issued, the supplier will receive an automated e-mail notification. The supplier is required to respond and complete the supplier sections of the SCAR form on Tesla’s SCAR Database within the timeframe outlined below:
將發布SCAR，通知供應商特斯拉收到了一個不符合要求的零件。當SCAR發出后，供應商將收到一封自動的電子郵件通知。供應商需要在以下時間范圍內回復并完成特斯拉SCAR數據庫中SCAR表格的供應商部分：
1. Supplier Information 供應商信息
The supplier must provide a point of contact for the SCAR within 2 local business hours.
供應商必須在當?shù)?個工作小時內提供一個SCAR的聯絡點。
2. Supplier Containment / Sorting 供應商遏制/分揀
The supplier must provide details on the immediate actions taken to contain all suspect and non-certified parts within 24 hours. Use Tesla’s Certified Shipment Tag as provided in BMS-0000259 - Supplier Quality Toolkit for identifying certified parts and complete the information on the tag.
供應商必須詳細說明在24小時內為遏制所有可疑和非認證零件而采取的即時行動。使用BMS-0000259-供應商質量工具包中提供的特斯拉認證裝運標簽來識別認證部件，并完成標簽上的信息。
3. Supplier Root Cause 供應商的根本原因
In-depth analysis of the reported problem shall be conducted to determine the true underlying cause(s) and / or reason for the discrepancy and reported to Tesla within 14 days. The supplier is assumed responsible until an acceptable resolution is found.
應深入分析報告的問題，以確定真正的根本原因和/或差異的原因，并在14天內向特斯拉報告。在找到可接受的解決方案之前，供應商應承擔責任。
4. Supplier Countermeasure 供應商對策
- Irreversible, long-term action taken to ensure that the problem will not
recur. 采取不可逆的長期行動，以確保問題不再發生。
- Methods that may be used are mistake-proofing systems, process changes, or tool changes; depending on the change, the supplier may be request to re-acquire TQP approval.
可能使用的方法是防錯系統、過程改變或工具改變；根據改變，供應
商可能被要求重新獲得TQP批準。
- Permanent countermeasures must be implemented within 30 days》
必須在30天內實施長期反措施。
Supplier Sort Marks 供應商分類標記
“Sort Marks”, or “Part Certification Marks”, used as an indication that an inspection process has been performed, shall be applied and evident on the parts as directed by Tesla. Permission and direction from Tesla as to the shape, location, and color of the mark is required prior to the application of any marks. Tesla approved acceptable marking provides visible verification that a sorting/inspection process has occurred without impact to fit, form, function or cosmetic concerns. This requirement must also be passed on to all appropriate sub-suppliers.
"分類標記 "或 "部件認證標記"，作為已執行檢查程序的指示，應按照特斯拉的指示在部件上應用并顯示出來。在使用任何標記之前，必須得到特斯拉對標記的形狀、位置和顏色的許可和指導。特斯拉批準的可接受的標記提供了可見的驗證，證明分類/檢查過程已經發生，而不影響配合、形式、功能或外觀問題。這一要求也必須轉達給所有適當?shù)拇渭?jí)供應商。
Return / Scrap Material Authorization 退貨/報廢材料授權
The supplier must provide an RMA # to reference the authorization to return or scrap nonconforming part(s) for credit within 7 days from the first notification of nonconforming parts. If the nonconforming part(s) are to be returned to the supplier, the supplier must provide Tesla a shipping account to use and / or arrange pick-up at Tesla.
供應商必須提供一個RMA號碼，以便在第一次收到不合格部件的通知后7天內，參考不合格部件的退貨或報廢授權，以獲得信貸。如果不合格的零件要退回給供應商，供應商必須向特斯拉提供一個運輸賬戶，以便使用和/或安排到特斯拉取貨。
5.8.3 Product Containment / Controlled Shipping
產品遏制 /受控發運
Controlled Shipping Level 1 一級受控發運
Controlled Shipping Level 1 is a demand by Tesla that a supplier put in place a redundant inspection process at the supplying location to sort for a specified non-conformance, implement a root-cause problem solving process, and isolate Tesla from the receipt of nonconforming parts/material. The redundant inspection is in addition to normal controls, and is enacted by the supplier’s employees. If placed on Level Containment by Tesla, the supplier will do the following:
一級受控發運是特斯拉要求供應商在供應地點實施額外檢驗程序，對特定的不合格品進行挑選，實施基于根本原因的問題解決程序，并防止特斯拉接受不合格零件/材料。額外檢驗是對正?？刂频难a(bǔ)充，并由供應商的員工實施。如果被特斯拉置于1級遏制狀態，供應商將采取以下措施:
- Submission of a Level 1 containment plan and/or corrective action plan to Tesla.
向特斯拉提交一級遏制計劃和/或糾正措施計劃。
- Evidence based on data from the controlled shipping area that the normal production process is free of all non-conformances for a minimum of 20 working days after the start of mass production or implementation of permanent corrective action.
根據受控運輸區的數據，證明正常生產過程在開始批量生產或?qū)嵤╅L(zhǎng)期糾正措施后，至少20個工作日內沒有任何不符合要求的情況。
Level 1 Containment may be elevated to Controlled Shipping Level 2 and/or New Business Hold if zero defects and/or permanent corrective action is not achieved.
如果不能實現零缺陷和/或長期糾正措施，1級遏制可能會被提升為2級受控發運和/或新業務暫停。
Controlled Shipping Level 2 二級受控發運
Controlled Shipping Level 2 is a Tesla requirement to a supplier to put in place a 3rd party redundant inspection process to sort for a specific nonconformance, while maintaining Controlled Shipping Level 1 inspections, and implementing a root-cause problem solving process. The data obtained from the 3rd party redundant inspection process as well as process audits are critical as both a measure of the effectiveness of the secondary
inspection process and the corrective actions taken to eliminate the initial
nonconformance
二級受控發運是特斯拉對供應商提出的要求，即在保持一級受控發運檢查的同時，建立第三方額外檢驗程序，對特定的不合格情況進行挑選，并實施根本原因問題解決程序。從第三方額外檢驗過程以及過程審核中獲得的數據是至關重要的，它既是衡量二級檢驗過程的有效性，也是為消除最初的不合格所采取的糾正措施。
Controlled Shipping Level 2 will be initiated for one or more of the following reasons:
二級受控發運將因以下一個或多個原因而啟動:
- Repeat Non-Conformances as addressed by Tesla’s SCAR Database.
特斯拉的SCAR數據庫所處理的重復不合格品。
- Repeat failure to submit compliance data that accurately reflects the physical component.
屢次未能提交準確反映物理成分的合規數據。
- Supplier’s current controls not sufficient to ensure conformance to requirements.
供應商的現有控制措施不足以確保符合要求。
Controlled Shipping Level 1 failures.
一級發運受控的失敗。
- Major Production Line Disruptions.
主要的生產線中斷。
- Quality Problem in the field (Warranty).
現場的質量問題(保修)。
Level 2 Containment will be initiated with a formal meeting between Tesla, the third-party and the supplier to establish all containment criteria. Exit from Controlled Shipping Level 2 will be based on data that the normal production process is free of all non-conformances for a minimum of 20 working days after the implementation of permanent corrective action.
二級遏制將由特斯拉、第三方和供應商之間的正式會議啟動，以確定所有遏制標準 。退出二級受控發運將基于以下數據:在實施長期糾正措施后，正常生產過程中至少有20個工作日沒有出現任何不符合要求的情況。
Level 2 Containment may cause the supplier to be subjected to a new business hold if timely permanent corrective action is not achieved.
如果沒有及時采取長期糾正措施，二級遏制可能會使供應商受到新的業務暫停。
The Supplier may submit a written request to Tesla, after the minimum 20 working days, to be removed from any containment level. This request must provide evidence that all the criteria of the containment have been met. Tesla will remove the supplier containment status after verification of the effectiveness of implemented actions.
供應商可在至少20個工作日后向特斯拉提交書面申請，要求從任何遏制級別中移除 。該請求必須提供證據，證明該遏制等級的所有標準已經得到滿足。特斯拉將在核 實所實施行動的有效性后取消供應商的遏制狀態。
5.8.4 Warranty 售后
1.Tesla will provide all relevant warranty claim information associated with warranty return part(s) and provide a sample of warranty return part(s) when available. Supplier may also request part(s) and/or data from Tesla.
特斯拉將提供與售后退貨零件相關的所有相關售后索賠信息，并在有條件時
提供售后退貨零件的樣本。供應商也可以向特斯拉索取零件和/或數據。
2.Suppliers are required to analyze all warranty return parts and:
供應商需要分析所有保修期內退回的零件和:
- Report the investigation results to Tesla.
向特斯拉報告調查的結果。
- Propose/implement countermeasures.
提出/實施措施。
- Confirm effectiveness of the countermeasure.
確認措施的有效性。
3.Supplier is responsible for all costs incurred by Tesla resulting from the delivery of non-conforming products and in accordance with the General Terms.
供應商負責支付特斯拉因交付不合格產品而產生的所有費用，并按照一般條 款的規定負責。
4.In the event where analysis results are inconclusive (NTF or “No Trouble Found”) after 30 days or within the timeframe set by Tesla, the supplier and Tesla will jointly analyze the cause of failure and cost ownership.
如果30天后或在特斯拉規定的時間范圍內，分析結果沒有結果(NTF或 "未發現故障")，供應商和特斯拉將共同分析故障原因和成本所有權。
5.A warranty recovery contact at Tesla will send a warranty claim based on the results of the analysis. The supplier will promptly send an agreement in writing. If the Supplier does not respond within 14 days from when the claim is made, the supplier will be deemed to have accepted the charges.
特斯拉的保修恢復聯系人將根據分析結果發送一份售后索賠。供應商將及時 發送一份書面協議。如果供應商在索賠時起的14天內沒有回應，供應商將被視為已接受收費。
6.If additional time is required for the supplier to appeal for charges, the supplier shall submit a written communication to request more time or a meeting to discuss the rationale for the appeal.
如果供應商需要更多的時間為收費提出上訴，供應商應提交一份書面函件， 要求更多的時間或開會討論上訴的理由。
7.Field quality performance and cost recovery concerns will be a significant factor in new product sourcing decisions.
對現場質量性能和成本回收的關注將成為新產品采購決策中的一個重要因素。
5.9 HVPT- High Volume Production Trial 大批量生產實驗
1.The Tesla format provided in BMS-0000259 - Supplier Quality Toolkit must be used to evaluate the HVPT.
必須使用BMS-0000259-供應商質量工具包中提供的Tesla格式來評估HVPT。
2.A HVPT is required for each new TQP and PCR.
每個新的TQP和PCR都需要一個HVPT。
3.The pre-launch control plan must be followed during the production trial run.
在生產試運行期間，必須遵循啟動前的控制計劃。
4.The scope and reporting of the HVPT and associated studies (refer Sections 6.4.3 and 6.4.4) shall be performed according to their individual requirements.
HVPT 的范圍和報告以及相關研究(參考第 6.4.3 和 6.4.4 節)應根據各自的 要求進行。
5.Concerns identified during the trial run must be added to the Problem FollowSheet (refer Section 6.5.4).
在試運行期間發現的問題必須添加到問題跟蹤表中(參考第6.5.4節)。
Section 6 TQP-Tesla Qualification Process
第六節 特斯拉資格認證程序
6.1 Overview 總覽
A successful launch at mass production is achieved through coordination and study of production trials, sample evaluation, part fitment and assembly trials. Tesla employs the preparation stages below as incremental steps towards mass production. By default, all aspects of each stage must be completed by the supplier unless directed by a Tesla representative. Other tasks may also be added by a Tesla representative.
通過協調和研究生產試驗、樣品評估、零件裝配和組裝試驗，成功地啟動了大規模
生產。特斯拉采用以下準備階段作為實現大規模生產的漸進步驟。默認情況下，每
每個階段的所有方面都必須由供應商完成，除非有特斯拉代表的指示。其他任務也可
也由特斯拉代表添加。
6.2 Specification 規格
6.2.1 Program Schedule 項目時間表
The Program Schedule is the overall project plan for supplier quality activities, from drawing issuance through TQP approval, to initial shipments of mass production parts.
項目時間表是供應商質量活動的總體項目計劃，從圖紙發布到TQP批準，再到批量生產零件的初始出貨。
1.The initial schedule is to be drafted with RFQ submission and finalized shortly after if awarded the business. It shall, at a minimum, define timing for the following:
最初的時間表將在提交RFQ時起草，如果獲得業務，則在不久后定稿。它至 少應確定以下事項的時間:
- Tesla Master Schedule – Prototype, Assembly trials, Start of Production.
特斯拉主時間表 - 原型樣件，裝配試驗，開始生產。
- Supplier Master Schedule – Prototype, TQP trials, Start of Production.
供應商主時間表--原型樣件、TQP試驗、開始生產。
- Production Level – Process and test equipment.
生產水平 - 加工和測試設備。
- Evaluations – Part evaluations to be done during trials.
評估--在試驗期間要進行的零件評價
- Testing – Plan for testing parts to Drawing and Inspection Standard.
測試 - 按照?qǐng)D紙和檢驗標準測試零件的計劃
- TQP documentation – Timing for each TQP task.
TQP文件 - 每個TQP任務的時間安排
2.If awarded business, future schedule planning and changes shall be performedthrough the Supplier Portal.
如果獲得業務，未來的日程規劃和變更應通過供應商門戶網站進行
3.A schedule resubmission is required for each new TQP Approval or PCR.每次新的TQP批準或PCR都需要重新提交時間表。
4.The schedule shall be reviewed regularly in intervals designated by Tesla.該時間表應在特斯拉指定的時間間隔內定期評審。
6.2.2 Inspection Standard 檢驗標準
The Inspection Standard is a document that supports a part’s associated drawing(s) and details significant part characteristics, their acceptance criteria and the method and frequency by which they must be monitored and controlled by the supplier.
檢驗標準是一份支持零件相關圖紙的文件，詳細說明了重要的零件特性、驗收標準以及供應商必須對其進行監測和控制的方法和頻率。
1.Suppliers are required to make Inspection Standards for all parts. Tesla retains the official, signed document.
供應商需要對所有零部件做出檢驗標準。特斯拉保留正式的、簽署的文件。
2.The Tesla format provided in BMS-0000259 - Supplier Quality Toolkit must be used.
必須使用BMS-0000259-供應商質量工具包中提供的特斯拉格式。
3.The part Inspection Standard, at a minimum, must define the following part characteristics: 零件檢驗標準，至少必須定義以下零件特征:
- Datum Structure. Datum結構
- Dimension and Tolerance. 尺寸和公差
- Performance. 性能
- Weight. 重量
- Material.材料
- Appearance standards.外觀標準
- Function.功能
- Color and/or Grain (if applicable).顏色和/或紋理 (如適用)
- Critical Items.關鍵項目
- Identification and Traceability Methods.標識和可追溯性方法。
4.The Inspection Standard must consider and include inspection related criteria as indicated on the Control Plans, PFMEA studies, etc., and the frequency of inspection must be developed based upon process capabilities.
檢驗標準必須考慮并包括控制計劃、PFMEA等所指出的與檢查有關的標準，而且檢查的頻率必須根據過程能力來制定。
5.The approved Inspection Standard criteria, subject to revision, must be followed for the life of the part without exception.
經批準的檢驗標準，可進行修訂在零件的使用壽命內必須遵守，沒有例外。
6.Drawing requirements not specifically stated on the part Inspection Standard must be revalidated annually at a minimum.
在零件檢驗標準中沒有特別說明的圖紙要求必須至少每年重新驗證一次。
7.The supplier must initiate revisions for all Engineering Change Orders.
供應商必須啟動所有工程變更單的修訂工作。
8.The supplier must submit all Inspection Standard revisions to Tesla.
供應商必須向特斯拉提交所有檢驗標準的修訂。
6.2.3 Measurements Systems Analysis (MSA) for Equipment Proposal 設備提案的測量系統分析(MSA)
1.An MSA shall be conducted on all components that meet any or all of the following conditions: 對符合以下任何或所有條件的所有部件都應進行MSA
- Require a capability analysis be conducted.
要求進行能力分析。
- Contain critical or special characteristics.
含有關鍵或特殊特性。
- Require on-going production monitoring.
要求持續的生產監測。
- As requested by Tesla.
按照特斯拉的要求
2.The supplier shall submit to Tesla a proposal for all tools, gauges, fixtures and other equipment required to produce parts to Tesla’s specifications and to meet the MSA requirements.
供應商應向特斯拉提交所有工具、量具、夾具和其他設備的建議書，以便按 照特斯拉的規格生產零件并滿足MSA要求。
3.The supplier shall ensure all proposed tools, gauges, fixtures and/or equipment meet the requirements set in Section 5.4.
供應商應確保所有提議的工具、量具、夾具和/或設備符合第5.4節規定的要 求。
4.No tools, gauges, fixtures or equipment may be purchased without written authorization and funding approval from Tesla.
沒有特斯拉的書面授權和資金批準，不得購買工具、量具、夾具或設備。
6.2.4 Control Plan (Prototype) 控制計劃(原型樣件)
1.The Prototype Control Plan shall be created and submitted to Tesla for review, and cover all aspects detailed in Section 5.3.
原型控制計劃應創建并提交給特斯拉評審，并涵蓋第5.3節詳述的所有方面
2.The scope of the plan should extend to cover either the production of prototype parts for Tesla or any production using tooling, equipment, or processes that are not mass production intent.
計劃的范圍應擴大到包括為特斯拉生產原型零件或任何使用非大規模生產意圖的工具、設備或工藝的生產。
3.Control Plans for prototype part production must consider factors such as the production methods, production quantities, and any added validation requirements associated with the intended use of the prototype parts.
原型零件生產的控制計劃必須考慮諸如生產方法、生產數量以及與原型零件的預期用途有關的任何附加驗證要求等因素。
4.Control Plans for tooling, equipment, and processes that are not mass production intent must consider factors that could result from the potential failure modes of the alternative production methods.
非大規模生產意圖的工具、設備和工藝的控制計劃必須考慮替代生產方法 的潛在故障模式可能導致的因素。
6.2.5 2D Drawing GD&T 平面圖紙形位公差
Suppliers providing component designs are responsible for providing GD&T data on all drawings, adhering to the following requirements:
提供零件設計的供應商負責在所有圖紙上提供GD&T數據，遵守以下要求:
1.Drawings must follow the standards and requirements outlined in BMS-0000023 - Drawing Block and Notes Standard, in addition to the requirements listed here.
圖紙必須遵循BMS-0000023中列出的標準和要求。 - 除了這里列出的要求外，還有圖塊和注釋標準。
2.Drawings and specifications should include engineering specification tests, product validation test requirements, and must be documented in time to support pre-launch Control Plan development.
圖紙和規格應包括工程規格測試、產品驗證測試要求，并且必須及時記錄下 來，以支持量產前控制計劃的制定。
3.Lot control and traceability requirements must be detailed on the drawings.
批量控制和可追溯性要求必須在圖紙上詳細說明。
4.Visual acceptance standards should define all potential visual concerns that may occur on the parts (i.e. grain, gloss, color, surface imperfections etc.) Visual standards should be developed jointly between the Tesla and the supplier, and should be approved prior to design release (e.g. A, B, and C surfaces to be defined and aligned to Tesla requirements).
目視驗收標準應定義零件上可能出現的所有潛在的視覺問題(即紋理、光澤 、顏色、表面缺陷等)。目視標準應在特斯拉和供應商之間共同制定，并在設計發布前得到批準 (例如，A、B、C面要定義并與特斯拉的要求一致)。
5.Critical characteristics must be indicated on drawings using the symbols defined in Section 7.3 of this document and within BMS-0000023 - Drawing Block and Notes Standard. In the event of conflicting information, BMS-0000023 - Drawing Block and Notes Standard shall take precedence.
關鍵特性必須使用本文件第7.3節和BMS-0000023-圖塊和注釋標準中定義的 符號在圖紙上注明。如果信息有沖突，應以BMS-0000023-圖塊和注釋標準為準。
6.2.6 Design for Manufacturing(DFM) Complete
制造設計(DFM)完成
Suppliers providing component designs are responsible for conduction a DFM analysis to ensure part design optimization. The following points are required:
提供零件設計的供應商負責進行DFM分析，以確保零件設計優化。需要注意以下幾點
1. Suppliers shall complete the Team Feasibility form in BMS-0000259 - Supplier Quality Toolkit and submit to their Tesla representative.
供應商應填寫B(tài)MS-0000259-供應商質量工具包中的團隊可行性表格，并提 交給其特斯拉代表。
2. Suppliers shall provide evidence of manufacturability and assembly analysis through CAE simulation or otherwise.
供應商應提供通過CAE模擬或其他方式進行可制造性和裝配分析的證據。
3. Suppliers should contact their appropriate Tesla representative for additional requirements.
供應商應與他們相應的特斯拉代表聯系，以了解更多的要求。
6.3 Process Setup 過程準備
6.3.1 Process Flow Chart 過程流程圖
1.A Process Flow Chart shall be drafted to detail each and every step in the supplier’s manufacturing process.
應起草一份過程流程圖，詳細說明供應商生產過程中的每一個步驟。
2.Any expected re-work processes must be shown in the Process Flow Chart.
任何預期的返工過程必須顯示在流程圖中。
3.The format in BMS-0000259 - Supplier Quality Toolkit may be used.
可以使用BMS-0000259-供應商質量工具包中的格式。
6.3.2 PFMEA - Process Failure Mode and Effects Analysis
過程失效模式及后果分析
Suppliers are required to complete a PFMEA and update it with improvements made during the trial phases, as a result of process changes, or changes due to corrective actions. The supplier must use cross functional approach to complete the PFMEA.
供應商必須完成PFMEA，并根據試驗階段的改進、過程變化或糾正措施帶來的變化進行更新。供應商必須使用跨職能的方法來完成PFMEA。
1.Follow the industry standard AIAG - Failure Mode & Effects Analysis (FMEA) Reference Manual.
遵循行業標準AIAG - 失效模式與后果分析(FMEA)參考手冊。
2.Design Failure Mode Effects Analysis (DFMEA) (if applicable) and Process Failure Mode Effects Analysis (PFMEA) must include reviews of both the equipment and the process. These activities should be completed prior to drawing release, tooling/process design, Process Control Plan, Inspection Standard, and Inspection Plan development.
設計失效模式影響分析(DFMEA)(如果適用)和過程失效模式影響分析( PFMEA)必須包括對設備和工藝的審查。這些活動應在圖紙發布、工具/工 藝設計、過程控制計劃、檢驗標準和檢驗計劃制定之前完成。
3.Significant product failure items identifed through DFMEA development that are not corrected with a design change must be indicated on the PFMEA and Control Plan documents, with sufficient inspection and prevention / detection capabilities to prevent non-conformances.
通過DFMEA開發確定的重大產品失效項目，如果沒有通過設計變更來糾正， 必須在PFMEA和控制計劃文件中指出，要有足夠的檢查和預防/檢測能力來防止不合格品。
4.Equipment / Process capability deficiencies identified based on the results from analytical studies such as PFMEA, etc., must be represented in the inspection plans and associated documents (ie: Process Control Plan, Inspection Standard, etc.) as required with 100% inspection criteria to ensure consistent achievement of quality requirements.
根據PFMEA等分析研究的結果確定的設備/工藝能力缺陷，必須在檢驗計劃和相關文件(即:工藝控制計劃、檢驗標準等)中體現出來，要求100%的檢驗標準，以確保質量要求的一致實現。
5.Sub-suppliers that provide materials or components that impact the Tier 1 part safety or regulatory requirements must develop, submit, and gain approval from the Tier 1 Supplier of a specific quality control plan, that assures conformance of their material, component or assembly. In the case of direct supply, the responsible Tesla representative has approval responsibility.
提供影響一級零件安全或監管要求的材料或零件的次級供應商必須制定、提交并獲得一級供應商對具體質量控制計劃的批準，以確保其材料、零件或組件的一致性。在直接供應的情況下，負責的特斯拉代表有批準責任。
6.The supplier must ensure that documented systems are in place at all sub- suppliers to control traceability and confirm specification compliance for all critical components including raw materials, parts, and assemblies.
供應商必須確保所有次級供應商都有記錄在案的系統，以控制可追溯性，并確認所有關鍵部件(包括原材料、零部件和組件)符合規格。
7.Safety, regulatory and FMVSS related processes must be continually monitored and controlled in regards to capability, utilizing industry accepted methods of statistical control. Refer to Section
6.4.4 for Capability requirements of specialcharacteristics.
安全、監管和FMVSS相關的過程必須在能力方面進行持續的監測和控制，利用行業公認的方法統計控制。關于特殊特性的能力要求，請參考第6.4.4節。
8.Specific plans and methods must be developed and utilized to ensure full traceability to include material lot identification, date, shift, assembly process, and delivery, verification of repair, and containment assurance.
必須制定和使用具體的計劃和方法，以確保全面的可追溯性，包括材料批次標識、日期、班次、裝配過程和交付、維修驗證和密封保證。
9.The final PFMEA shall be submitted for TQP approval.
最終的PFMEA應提交給TQP批準。
6.3.3 Control Plan (Production) 控制計劃(批量生產)
1.The Production Control Plan shall be created and submitted to Tesla for review, and cover all aspects detailed in Section 5.3.
生產控制計劃應建立并提交給特斯拉審查，并涵蓋第5.3節中詳述的所有方面。
2.The scope of the Production Control Plan should only cover parts produced during mass production.
生產控制計劃的范圍應只包括大規模生產過程中生產的零件。
6.3.4 Measurement Systems Analysis (MSA) for Equipment Acceptance 設備驗收的測量系統分析(MSA)
1.Once written authorization and funding approval has been received for a proposed tool, fixture, gauge and/or equipment, the supplier shall create an Instruction Manual(s) covering its correct use to meet Tesla’s requirements. Purchased tool, fixture, gauge and/or equipment shall be qualified for fitness of use (eg: certification).
一旦收到擬議的工具、夾具、量具和/或設備的書面授權和資金批準，供應商應編制一份涵蓋其正確使用的指導手冊以滿足特斯拉的要求。購買的工具 、夾具、量具和/或設備應符合使用條件(例如:認證)。
2.All Instruction Manuals shall be submitted to Tesla for approval and should not be used until approved. The format in BMS-0000259 - Supplier Quality Toolkit may be used.
所有指導手冊應提交給特斯拉批準，在獲得批準之前不應使用?？梢允褂?BMS-0000259-供應商質量工具包中的格式。
6.4 Process Validation 過程確認
6.4.1 Measurement Systems Analysis (MSA) for Equipment Validation 用于設備確認的測量系統分析(MSA)
1.An MSA shall be conducted as per TS-0003413 - Measurement Systems Analysis Standard using inspection personnel with conditions as similar to the mass production operations as possible at the supplier site.
MSA應按照TS-0003413-測量系統分析標準進行，使用檢查人員，其條件盡可能與供應商現場的大規模生產操作相似。
2.The results of the MSA shall be submitted to Tesla as detailed in the referenced Tesla standards listed in Section 5.4.
MSA的結果應按照第5.4節所列的參考特斯拉標準中的詳細規定提交給特斯 拉。
6.4.2 Validation Testing 確認性測試
1.Validation tests will be conducted as per the Inspection Standard and an analysis of the results submitted to the portal. All tests will be conducted on parts/processes representative of final production intent pedigree or as agreed by Tesla.
確認測試將按照檢驗標準進行，并向門戶網站提交結果分析。所有測試都將在代表最終生產意圖的零件/過程上進行，或經特斯拉同意。
6.4.3 Capacity Study 產能研究
A Capacity Study shall be prepared for every process/line used by the supplier. The study should be included in the TQP and PCR submissions as well as be updated for all process improvements and changes. The Capacity Study will be used by Tesla to confirm the expected capacity for a given part.
應為供應商使用的每道工序/生產線準備一份能力研究報告。該研究應包括在提交 的TQP和PCR中，并為所有過程改進和變化進行更新。特斯拉將使用產能研究報告來確認某一特定零件的預期能力。
1.The Tesla format provided in BMS-0000259 - Supplier Quality Toolkit or on the Supplier Portal may be used.
可以使用BMS-0000259-供應商質量工具包中提供的特斯拉格式或供應商門戶 網站上的格式。
2.A study shall be conducted for each line, machine, tool, etc. used and whenever a line, machine, tool, etc. is added, changed or removed.
對每一條使用的生產線、機器、工具等，以及每當增加、改變或移除生產線機器、工具等，都應進行研究。
3.The number of parts used to evaluate the study shall be determined by Tesla.
用于評估研究的部分?jǐn)?shù)量應由特斯拉決定。
4.Run at Rate (R@R) studies shall be conducted to confirm that production capacity is correct to the supplier’s original planned capacity and capability.
應進節拍生產(R@R)研究，以確認生產能力與供應商的原計劃產能和能力是正確的。
5.The study shall include the actual measured takt time for each operation.
該研究應包括每項操作的實際測量節拍時間。
6.The study shall follow the steps outlined in the Process Flow chart. If more than one operation is performed at a given station, the operations should be separate line items on the Capacity Study.
該研究應遵循過程流程圖中描述的步驟。如果在一個給定的工位進行一個以上的操作，這些操作應在能力研究報告中作為單獨的項目。
7.Process steps that do not meet Tesla’s demand forecast, for current or future volumes, must be added to the Problem Follow Sheet (PFS) and tracked for improvement.
不符合特斯拉對當前或未來數量的需求預測的流程步驟，必須添加到問題跟 蹤表(PFS)中，并跟蹤改進。
6.4.4 Capability Study 能力研究
1.Capability data (Ppk and Cpk) must be submitted at each trial up to, and including, the initial shipment for SOP. If a trial requires more than one shipment of parts, capability data will not be necessary after the initial shipment, provided the parts were manufactured in the same lot as the initial shipment.
能力數據(Ppk和Cpk)必須在每次試驗中提交，直到(包括)首次發運的批量生產件 。如果一項試驗需要一批以上的零件，那么在首次發運后就不需要提交能力數據，只要這些零件與首次發運的零件是同一批生產的。
2.Capability demonstrations, consisting of a minimum 30 part study, or an amount defined in the Tesla approved Inspection Standard, must be conducted per line, machine, tool, etc. or whenever a line, machine, tool, etc. is added, changed or removed.
每條生產線、機器、工具等或每當生產線、機器、工具等被添加、改變或移除時，都必須進行能力論證，包括至少30個零件的研究，或特斯拉批準的檢驗標準中規定的數量。
3.Cpk / Ppk data is required on all critical characteristics as designated by Tesla.
特斯拉指定的所有關鍵特性都需要Cpk / Ppk數據。
- All characteristics for safety, regulatory, and FMVSS requirements must have a Cpk and Ppk ≥ 1.67. All other special characteristics with Cpk or Ppk < 1.33 will not be accepted without 100% inspection.
所有用于安全、法規和FMVSS要求的特性必須有Cpk和Ppk≥1.67。所有其他特殊特性的Cpk或Ppk< 1.33如果沒有100%的檢查，將不被接受。
- Ppk / Cpk requirements may be established for additional specific part characteristics that significantly affect performance, fit, function, installation workability, or other identified FMEA items.
Ppk/Cpk可能要求針對，對性能、配合、功能、安裝可操作性或其他已確定的FMEA項目有重大影響的其他特定零件特性而制定。
- The Inspection Standard will be used to define additional characteristics requiring a capability analysis.
檢驗標準將被用來定義需要進行能力分析的其他特性。
4.Cpk / Ppk data should be submitted on the Sample Data Sheet (SDS), or as directed by Tesla, from samples taken throughout each build. Samples must be taken from each die, cassette, line, cavity, etc. used in production.
Cpk/Ppk 數據應在樣品數據表(SDS)上提交，或按照特斯拉的指示，從整個生產過程中抽取樣品。必須從生產中使用的每個模具、料盒、生產線、空腔等處取樣。
5.Continuous long term Ppk verification must be carried out for every critical characteristic, with acquired data maintained and utilized for continuous improvement. Tesla may request data submission at any time.
必須對每個關鍵特性進行持續的長期Ppk驗證，并保持和利用獲得的數據進行持續改進。特斯拉可在任何時候要求提交數據。
6.Inspection frequencies must be in conjunction with Cpk results. Depending on machine or process capabilities, the inspection requirements may increase or decrease. Any changes to the inspection frequency must be approved by Tesla through a modification of the Inspection Standard.
檢查頻率必須與Cpk結果相結合。根據機器或工藝能力的不同，檢查要求可能會增加或減少。檢查頻率的任何變化必須通過修改檢查標準得到特斯拉的批準。
7.Cpk / Ppk Inspection Sampling / Guidelines:
Cpk / Ppk檢驗取樣/指南
|
Action Necessary |
Cpk |
Ppk |
|
Accept Product. Continue to reduce process variation. |
≥ 1.67 |
≥ 1.33 |
|
接受產品，繼續減少過程中的變差 |
|
Accept Product. Increased sampling frequency until stability is re-established |
1.33 ≤ Cpk < 1.67 |
N/A |
|
接受產品。增加采樣頻率，直到穩定性重新建立 |
|
100% inspection required. |
< 1.33 |
< 1.33 |
|
需要100%的檢查 |
Capability Studies may not be required under the following conditions; check with your assigned Tesla representative for clarification.
在下列情況下，可能不需要進行能力研究;請向你指定的特斯拉代表查詢，以了解情況
1.Machine conditions are controlled and batch produced with certifications provided (i.e. raw material certifications).
機器條件得到控制，批量生產時提供認證(即原材料認證)。
2.Characteristics are inspected 100% in-process.
特性100%在過程中檢驗。
6.4.5 SDS - Sample Data Sheet 樣件數據表
Sample Data is required with every shipment of parts to Tesla prior to Mass Production; this includes shipments of prototype, tooling, and mass production level ECO numbers.
在批量生產之前，每批運往特斯拉的零件都需要提供樣品數據;這包括原型樣件的發運、工裝和批量生產水平的ECO編號。
1.The format provided in BMS-0000259 - Supplier Quality Toolkit must be used and the complete production lot must be represented.
必須使用BMS-0000259-供應商質量工具包中提供的格式，并且必須代表完整 的生產批次。
2.Capability Data is to include all Design Critical and Process Critical characteristics. Where applicable, the piece samples must represent each die, cavity, lathe, etc. used in producing the lot of parts.
能力數據應包括所有設計關鍵和過程關鍵特性。在適用的情況下，工件樣品 必須代表用于生產該批零件的每個模具、腔體、車床等。
The Sample Data required can be categorized into two types:
所需的樣件數據可分為兩種類型:
Sample Parts 樣品零件- The parts measured for Sample Data must be provided with the shipment and must be clearly numbered in a nondestructive pre-approved method.
為樣件數據而測量的零件必須與貨物一起提供，并且必須以非破壞性預先批準的方法進行明確的編號。
- Sample parts used for capability study purposes must be selected from parts built during the HVPT. By default, a total of 30 randomly pulled parts must be used for the study, unless a different sampling plan is specified in the inspection standard.
用于能力研究的樣本零件必須從HVPT期間制造的零件中選擇。默認情況 下，必須使用總共30個隨機抽取的零件進行研究，除非檢查標準中規定了不同的抽樣計劃。
- The parts used for the 100% layout must be provided to Tesla for inspection. By default, 5 randomly pulled parts must be used for the study, unless a different sampling plan is specified in the inspection standard.
用于100%全檢的零件必須提供給Tesla進行檢查。默認情況下，必須使用 5個隨機抽取的零件進行研究，除非檢查標準中規定了不同的抽樣計劃。
- Sample Parts not provided with the shipment will result in a Quality Hold in Receiving Inspection until the Sample Parts can be received.
沒有隨貨提供的樣品零件將導致收貨檢驗中的質量暫停，直到收到樣品零件。
Sample Data 樣件數據
- The Sample Data, including the copy of the current Inspection Standard and numbered Design Drawing, must be submitted to Tesla with each shipment.
樣件數據，包括現行檢驗標準和編號的設計圖紙的復印件，必須隨每批貨物提交給特斯拉。
- Sample Data not provided with the shipment will result in a new business hold until the Sample Data can be received.
沒有隨貨提供的樣件數據將導致新的業務暫停，直到收到樣件數據。
- Sample Data should also be uploaded to the Supplier Portal before or on the day of part delivery.
樣件數據也應在零件交付之前或當天上傳到供應商門戶網站。
6.4.6 AAR - Appearance Approval Report 外觀批準報告
Tesla will include Color and Grain information in the Drawing, if applicable. The Appearance Approval Report (AAR) is used for color, parting line, and grain approval.
特斯拉將在圖紙中包括顏色和紋路信息(如果適用)。外觀批準報告(AAR)用于顏色、分界線和紋路批準。
a.Supplier should refer to the AAR guide AAR Supplier Presentation on the Supplier Portal on how to obtain Color and Grain approval.
供應商應參考供應商門戶網站上的AAR指南AAR供應商介紹，了解如何獲得顏色和紋路批準。
b.Suppliers must obtain Color and Grain approval prior to TQP approval, when applicable. The Tesla format provided on the Supplier Portal must be used.
在適用的情況下，供應商必須在TQP批準之前獲得顏色和紋路的批準。必須 使用供應商門戶網站上提供的特斯拉格式。
c.In addition to the AAR, a separate TQP Approval form for “Appearance Only” will be submitted for approval on each appearance item noted on the design record (eg. each individual color requires a separate approval form).
除AAR外，"僅外觀 "的單獨TQP審批表將提交給設計記錄上注明的每個外觀 項目進行審批(例如，每個單獨的顏色需要單獨的審批表)。
Boundary Samples 極限樣件
A boundary sample is a method which establishes a subjective visually approved sensory standard when a characteristic is difficult to define or communicate by any other method.
極限樣件是一種方法，當某一特性難以用任何其他方法定義或溝通時，它可以建立一個主觀的視覺認可的感官標準。
a.The Tesla format provided in BMS-0000259 - Supplier Quality Toolkit must be used to request a boundary sample.
必須使用BMS-0000259-供應商質量工具包中提供的Tesla格式來申請極限樣件。
b.Boundary samples may be temporary or permanent but should only be used when absolutely necessary. If corrective actions cannot be implemented due to excessive cost, technology, etc. a boundary sample may be considered.
極限樣件可以是臨時的，也可以是永久的，但只有在絕對必要時才可以使用。如果由于成本過高、技術等原因無法實施糾正措施，可以考慮采用極限樣件。
c.Boundary samples must be representative of the Supplier’s confirmed process capability and be consistently achieved.
極限樣件必須能代表供應商確認的過程能力，并能持續實現。
d.Boundary samples are not intended to reduce scrap. Scrap reduction should result from process improvements. If, however, process improvements, technology, etc. fail to reduce scrap quantities, a boundary sample may be considered.
極限樣件的目的不是為了減少報廢。報廢的減少應來自于過程的改進。但是，如果過程改進、技術等不能減少報廢數量，可以考慮極限樣件。
e.A minimum of three (3) equivalent sets of boundary samples must be prepared and sent to the appropriate Tesla representative for review. A completed Boundary Sample Tag is to be affixed to each sample submitted for approval. After approval, two sets will be returned to the Supplier; one to be used as a master, the other to be used as a working set.
必須準備至少三(3)套等效的邊界樣本，并送至適當?shù)奶厮估磉M(jìn)行審 查。每個提交審批的樣品上都要貼上一個完整的邊界樣品標簽。批準后，兩套樣件將會被退回給供應商，一套作為主樣件，另一套作為工作樣件。
f.The master boundary samples must be maintained at the supplier in a manner which will prevent damage or deterioration to them.
主樣件必須在供應商處以防止其損壞或變質的方式進行維護。
g.The supplier must provide sufficient lead time for the boundary samples to be evaluated. Expectations should be established prior to tooling and parts cannot be shipped until the boundary sample has been approved, signed and returned to the supplier.
供應商必須提供足夠的準備時間，以便對極限樣品進行評估。應在制作模具之前確定期望值，在極限樣品被批準、簽署并返回給供應商之前，不能發運零件。
h.Revisions or change requests to approved boundary samples must be handled in the same manner as the original submission.
對已批準的極限樣件的修訂或更改請求必須以與最初提交的相同方式處理。
6.4.7 Packaging Plan包裝計劃
Unless directed otherwise, packaging data must be submitted to the Supplier Portal, following the procedures explained under the Packaging Submission page.
除非另有指示，包裝數據必須提交給供應商門戶網站，并遵循包裝提交頁面下解釋的程序。
All pack size, packaging, container or pallet dimensions and/or type must be pre-approved by the appropriate Tesla representative(s). The supplier must also receive approval for temporary use of packaging which does not meet requirements.
所有的包裝尺寸、包裝、容器或托盤的尺寸和/或類型必須事先得到特斯拉相關代 表的批準。供應商臨時使用不符合要求的包裝，也必須得到批準。
6.4.8 Control Plan (Safe Launch) 控制計劃(安全啟動)
A Safe Launch Plan (SLP) shall be used as requested for all pre-production and production requirements that require TQP approval. The purpose of a SLP is to verify product & process stability in an organized manner. Collected data shall be monitored and analyzed, and adjustments made to product and/or processes when necessary.
對于所有需要TQP批準的生產前和生產要求，應按要求使用安全啟動計劃(SLP) 。SLP的目的是以一種有組織的方式驗證產品和過程的穩定性。應監測和分析收集的數據，并在必要時對產品和/或過程進行調整。
As directed by Tesla the supplier shall establish a safe launch control plan based off of the following elements:
按照特斯拉的指導，供應商應根據以下內容制定一個安全啟動控制計劃:
a.The Control Plan shall be created and submitted to Tesla for review, and cover all aspects detailed in Section 5.3.
控制計劃應建立并提交給特斯拉評審，并涵蓋第5.3節中詳述的所有方面。
b.The Control Plan must validate the assumptions for control frequencies used in the Production Control Plan (refer Section 6.3.3), capture potential non- conformances due to unforeseen or overlooked potential failure modes, and increase reactions to non-conformances.
控制計劃必須確認生產控制計劃中使用的控制頻率的假設(參考第6.3.3節) ，捕捉由于未預見的或被忽視的潛在故障模式造成的潛在不符合要求，并增加對不符合要求的反應。
c.A reaction plan shall be devised in case of non-conformances discovered, with immediate notification and implementation of containment and corrective actions at site of discovery.
在發現不符合要求的情況下，應制定反應計劃，立即通知并在發現地實施遏制和糾正措施。
d.Documented evidence of execution and validation of the control plan using an agreed format.
使用商議確定的格式記錄控制計劃的執行和驗證的證據。
e.The duration of the SLP is to the discretion of Tesla, however by default the minimum periods for programs are as follows:
SLP的期限由特斯拉決定，但默認情況下，項目的最短期限如下:
- 100,000 pieces produced annually - 90 days from SOP
每年生產100,000件 - 從SOP開始90天內完成
- 1,000 to 100,000 pieces produced annually - 90 to 180 days from SOP. 每年生產1,000到100,000件 - 從SOP開始90到180天。
- < 1,000 pieces produced annually; first batch.
每年產量<1,000件; 第一批。
f.The supplier may be required to indicate compliance with the Safe Launch requirements by attaching the SLP label identified in BMS-0000003 - Shipping Label Specification to each part.
供應商可能被要求在每個部零件上貼上BMS-0000003-運輸標簽規范中確定的 SLP標簽，以表明符合安全啟動的要求。
g.Eligibility to exit Safe Launch can only be obtained with written acknowledgement from Tesla demonstrating the following criteria have been met:
只有得到特斯拉的書面確認，證明符合以下標準，才有資格退出安全啟動: - Parts/material were shipped meeting the success criteria defined in the SLP. 零件/材料的運送符合SLP中規定的成功標準。
- If non-conformances are detected, the SLP must be kept in place until process controls and capabilities have proven effective.
如果發現不符合要求的情況，必須保持SLP，直到過程控制和能力被證明有效。
h.SLP status will be continuously updated and made available to Tesla; Tesla may at its discretion track Safe Launch activities via weekly submissions from Supplier.
SLP狀態將被持續更新并提供給特斯拉;特斯拉可自行決定通過供應商每周 提交的文件來跟蹤安全啟動活動。
6.5 Implementation 實施
6.5.1 Material Regulatory Compliance Submissions 材料合規性提交
Tesla suppliers must complete and submit the certifications, and other related items, as outlined in Section 5.7.1. This includes, but is not limited to:
特斯拉供應商必須完成并提交第5.7.1節所述的認證及其他相關項目。這包括，但不限于：
1.Letter and information as required for Tesla to comply with any and all applicable Conflict Minerals requirements.
提供特斯拉需要的信件和信息，以便符合所有適用的沖突礦物要求。
2.Evidence of material marks on applicable products.
適用產品上的材料標記的證據。
3.Approval of data submitted into Tesla’s required material reporting database,including if applicable an accurate and complete International Material Data System (IMDS) submission for each non-prototype production part.
批準提交到特斯拉所要求的材料報告數據庫的數據，包括在適用情況下為每個非原型生產零件提交準確和完整的國際材料數據系統(IMDS)。
6.5.2 Safety Regulatory Compliance Submissions 安全監管合規提交
Tesla suppliers must complete and submit the certifications, and other related items, as outlined in Section 5.7. This includes, but is not limited to:
特斯拉供應商必須完成并提交第5.7節所述的認證及其他相關項目。這包括，但不限于
1.UL Certification. UL認證
2.Regional or country specific compliance evidence. 區域或國家的具體合規證據
3.Flammability compliance test results. 可燃性符合性測試結果
6.5.3 Traceability 可追溯性
Traceability grades are assigned by Tesla for each part on its associated drawing with regards to part, subcomponent and raw material traceability.
特斯拉為其相關圖紙上的每個零件指定了可追溯等級，涉及零件、子零件和原材料的可追溯性。
Suppliers are required to maintain traceability as per the requirements listed in BMS- 0000151 - Traceability Specifications (specific to the designated traceability grade), for all delivered materials to both the raw material source and to the manufacturing tests and processes that were used to produce them. Suppliers to Tesla shall also impose these requirements on their Suppliers such that clear and unbroken traceability is maintained to the lowest Supplier in the supply chain.
供應商必須按照BMS-0000151-可追溯性規范(特定適用于指定的可追溯性等級)中列出的要求，對所有交付的材料的原材料來源以及用于生產這些材料的制造測試和過程保持可追溯性。特斯拉的供應商也應向其供應商提出這些要求，以便保持清晰和不間斷的可追溯性到供應鏈中最低級別的供應商。
Evidence of meeting the traceability requirements shall be submitted by the supplier. Items required for submission will be defined by Tesla and may include (but are not limited to), labels, serial numbers, lot codes and photos of part markings.
供應商應提交滿足可追溯性要求的證據。要求提交的項目將由特斯拉定義，可能包括(但不限于)標簽、序列號、批次代碼和零件標記的照片。
6.5.4 PFS-Problem Follow Sheet 問題跟蹤表
The PFS shall be used to track all issues and their resolution for each new TQP program and should be continually used throughout the TQP approval process.
PFS應被用來跟蹤每個新的TQP計劃的所有問題及其解決情況，并應在整個TQP審批過程中持續使用。
1.The supplier must keep an updated PFS for each part on the Supplier Portal.
供應商必須在供應商門戶網站上保持每個部件的最新PFS。
2.The PFS shall be reviewed with Tesla as designated until all items are closed.
PFS應與Tesla進行指定評審，直到所有項目結束。
3.The supplier shall assign responsibility and timing for problem countermeasures.
供應商應分配好問題對策的責任和時間。
4.Part quality issues that do not meet agreed expectations may have a SCAR issued (refer Section 5.8.2).
沒有達到約定的期望值的零件質量問題可能會被發出SCAR(參考第5.8.2節)。
5.Tesla will have the final decision regarding the closure of PFS items.
特斯拉將擁有關于關閉PFS項目的最終決定權。
6.5.5 TQP Approval TQP批準
TQP approval signifies the end of trial phases and that the part meets all Drawing and Inspection Standard requirements for quality. Approval is also needed for the manufacturing process from which the TQP parts were produced.
TQP的批準標志著試驗階段的結束，零件符合所有圖紙和檢驗標準的質量要求。生產TQP零件的制造過程也需要批準。
TQP approval signifies the supplier’s readiness to begin manufacturing and shipping mass production parts. Any changes to the process afterward will require the supplier to submit and obtain a PCR approval.
TQP的批準標志著供應商已經準備好開始制造和發運批量生產的零件。此后對過程的任何改變都需要供應商提交并獲得PCR批準。
TQP approval will be granted by Tesla to the supplier, after the supplier:
TQP批準將由特斯拉授予供應商，在供應商完成以下之后：
1.Performs their HVPT 執行 HVPT
2.Has completed and submitted all tasks detailed within this, and referenced
documents, or as designated by an appropriate Tesla representative.
已經完成并提交了本文件和參考文件中詳述的所有任務，或由適當?shù)奶厮估?/span>
代表指定。
3.Has received approval from Tesla, of all submitted and required documents, tasks,etc.已收到特斯拉對所有提交和要求的文件、任務等的批準。
Tesla will provide TQP approval prior to the supplier’s first SOP shipment. It is the supplier’s responsibility to allow enough time between their HVPT trial and their first SOP shipment for Tesla to approve.
特斯拉將在供應商的第一次SOP發貨前提供TQP批準。供應商有責任在HVPT試驗和第一次SOP發貨之間留出足夠的時間讓特斯拉批準。
Interim TQP Approval 臨時TQP批準
Interim approval may be given if a supplier has not met or completed all of the requirements for full approval. Interim approval permits the suppliers to sell parts to Tesla to support production; however, no tooling money will be paid until full approval has been achieved. Rejection of TQP approval will require immediate action taken by the supplier to achieve approval or interim approval to support Tesla SOP.
如果供應商沒有達到或完成全面批準的所有要求，可以給予臨時批準。臨時批準允許供應商向特斯拉出售零部件以支持生產;但是，在獲得完全批準之前，不會支付任何工具費用。拒絕TQP批準將要求供應商立即采取行動，以實現批準或臨時批準，支持特斯拉SOP。
1.If interim TQP approval is provided, the specific requirements that must be completed to receive full approval will be explained by a Tesla representative.
如果提供臨時TQP批準，特斯拉代表將解釋必須完成的具體要求，以獲得全 面批準。
2.Rejection of TQP approval requires immediate containment actions and
submission of a plan to get to full approval.
拒絕TQP的批準需要立即采取遏制行動，并提交一份計劃，以獲得全面批準。
Section 7 Appendix
第七節 附錄
7.1 Abbreviations & Definitions 縮寫和定義
|
4M |
Man, Method, Machine, Material |
|
人、方法、機器、材料 |
|
AIAG |
Automotive Industry Action Group |
|
汽車工業行動小組 |
|
CAE |
Computer Aided Engineering |
|
計算機輔助工程 |
|
DFM |
Design for Manufacturing |
|
裝配設計 |
|
DFMEA |
Design Failure Mode and Effects Analysis |
|
設計失效模式和后果分析 |
|
ECO |
Engineering Change Order |
|
工程變更單 |
|
FMVSS |
Federal Motor Vehicle Safety Standard聯邦機動車安全標準 |
|
General |
The General Terms and Conditions attached to the purchase order issued by Tesla or, if applicable, the signed General Terms and Conditions between Tesla and the Supplier. |
|
Terms |
簽發的采購訂單所附的一般條款和條件 |
|
|
特斯拉或(如適用)特斯拉與供應商之間簽署的一般條款和條件。 |
|
GRR / |
Gage Repeatability and Reproducibility |
|
GR&R |
量具的可重復性和再現性 |
|
HVPT |
High Volume Production Trail |
|
大批量生產試驗 |
|
IMDS |
International Mtaerial Data System |
|
國際材料數據系統 |
|
ISO |
International Organization for Standardization |
|
國際標準化組織 |
|
PCR |
Process Change Request |
|
過程變更申請 |
|
PFMEA |
Process Failure Mode and Effects Analysis |
|
過程失效模式及后果分析 |
|
PFS |
Problem Follow Sheet |
|
問題跟蹤表 |
|
QMS |
Quality Management System |
|
質量管理體系 |
|
QRC |
Quality Readiness Checksheet |
|
質量準備檢查清單 |
|
R@R |
Run at Rate |
|
節拍生產 |
|
RFQ |
Rrquest for Quotation |
|
詢價要求 |
|
SCAR |
Supplier Corrective Action Request |
|
供應商糾正措施要求 |
|
SIE |
Supplier Industrialization Engineer |
|
供應商工業化工程師 |
|
SLP |
Safe Launch Plan |
|
安全啟動計劃 |
|
SOP |
Start of Production |
|
開始量產 |
|
TQP |
Tesla Qualification Process |
7.2 External Contact Information 外部聯系信息
7.3 Critical Characteristic Symbols and Definitions
關鍵特性符號和定義
The above table is an excerpt from BMS-0000023 - Drawing Block and Notes Standard. In the event of conflicting information, BMS-0000023 - Drawing Block and Notes Standard shall take precedence.
上表是BMS-0000023-圖塊和注釋標準的節選。如果信息有沖突，應以BMS- 0000023-圖塊和注釋標準為準。
As noted in Section 5.1, Critical Characteristics shall be identified on the Drawing and Inspection Standard using these symbols for features that are critical to safety, reliability, function or fit and/or by FMEA methods. Suppliers must identify critical characteristics on their Inspection Standards, Control Plans, Work Instructions, Process Flow Charts, and other relevant documentation.
如第 5.1 節所述，對于那些對安全性、可靠性、功能或匹配性至關重要的特性，和/或通過 FMEA 方法，應在圖紙和檢查標準中使用這些符號來識別關鍵特性。供應商必須在其檢驗標準、控制計劃、工作指導書、過程流程圖和其他相關文件中確定 關鍵特征。
Section 8 References
第8節 參考文獻
AAR Supplier Presentation
AIAG - Advanced Product Quality Planning (APQP) and Control Plan
AIAG - Failure Mode & Effects Analysis (FMEA) Reference Manual
AIAG - Measurement Systems Analysis (MSA) Reference Manual.
AIAG - Production Part Approval Process (PPAP).
AIAG - Statistical Process Control (SPC).
BMS-0000003 - Shipping Label Specification.
BMS-0000007 - Part Labeling Specification.
BMS-0000023 - Drawing Block and Notes Standard.
BMS-0000151 - Traceability Specifications.
BMS-0000259 - Supplier Quality Toolkit.
BMS-0000342 - Certificate of Compliance.
BMS-0000408 - Material Compliance Reporting.
CQI-09 - Heat Treat System Assessment.
CQI-11 - Special Process: Plating System Assessment.
CQI-12 - Coating System Assessment.
CQI-15 - Welding System Assessment.
CQI-17 - Special Process: Soldering System Assessment.
CQI-23 - Molding System Assessment.
Domestic Expandable Standards.
General Terms.
ISO 1043-1 - Plastics -- Symbols and Abbreviated Terms -- Part 1: Basic Polymers and their Special Characteristics.
ISO 1043-2 - Plastics -- Symbols and Abbreviated Terms -- Part 2: Fillers and Reinforcing Materials.
ISO 1043-3 - Plastics -- Symbols and Abbreviated Terms -- Part 3: Plasticizers.
ISO 1043-4 - Plastics -- Symbols and Abbreviated Terms -- Part 4: Flame Retardants.
ISO 11469 - Plastics -- Generic Identification and Marking of Plastic Products.
ISO 1629 - Rubber and Latices -- Nomenclature.
Overseas Expendable Standards.
Packaging Material and Equipment Codes.
TS-0003139 - Gauge and Check Fixture Standard.
TS-0003403 - Dimensional Data Transfer.
TS-0003413 - Measurement Systems Analysis Standard.
TS-0003552 - GRR.
TS-0003687 - Gauge and Check Fixture Buyoff Check Sheet.
TS-0003986 - MDSS.
京公網安備11010802046783號
